IKO IRT3515
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA4015Z, YT4015

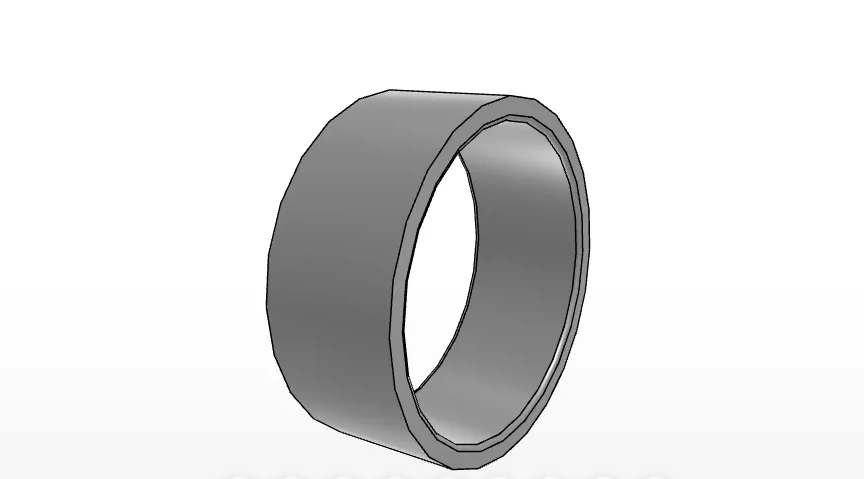

IKO IRT3515 Inner Ring Provides a Metric Wear Surface
The IKO IRT3515 is an inner ring in the IKO Inner Rings series. It is designed for shell-type assembly and is listed for use with TA 4015Z and YT 4015 bearings. The ring has a metric bore and a specified mass of 35 g.
What are the basic dimensions of the IRT3515?
The supplied data lists a shaft diameter and inside diameter of 35 mm, an outer diameter of 40 mm, and a width of 15.5 mm. Additional values include rs min. 0.6 mm, da min 39 mm, and da max 39.5 mm.
IKO IRT3515 Is Made from High Carbon Chrome Steel
The product data identifies the bearing material as high carbon chrome steel, also described in the product introduction as high carbon steel. The component is categorized under Brand > IKO > Inner Rings and belongs to the IKO Inner Rings product series.
What material and bearing type are recorded for this part?
- Bearing type: Inner Rings
- Brand: IKO
- Material: High carbon chrome steel
- Designation: IRT3515
IKO IRT3515 Matches Listed TA and YT Assemblies
The IRT3515 inner ring is specified to assemble with TA 4015Z in the TA_Z and TAM group and YT 4015 in the YT and YTL group. No assembled bearing is listed for the TLA_Z or TLAM group.
Which assembly compatibility information should be checked before selection?
- Confirm the mating order number is TA 4015Z or YT 4015 according to the supplied data.
- Verify the required shaft and inside diameter: 35 mm.
- Verify fitment space using the listed 40 mm outer diameter, 15.5 mm width, and edge dimension data.
