IKO IRT3520
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA4020Z, TLA4020Z

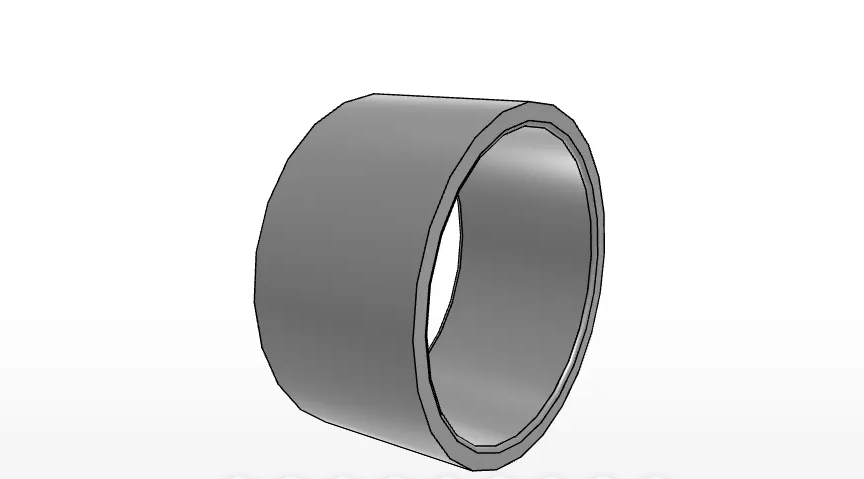

IKO IRT3520 Inner Ring for Metric Bearing Assembly
The IKO IRT3520 is an inner ring in the IKO Inner Rings series. It is listed for shell-type assembly and is designed to assemble with TA 4020Z and TLA 4020Z bearings.
What is the IRT3520?
The IRT3520 is a metric inner ring identified by order number IRT3520. It belongs to the Inner Rings product category under the IKO brand path.

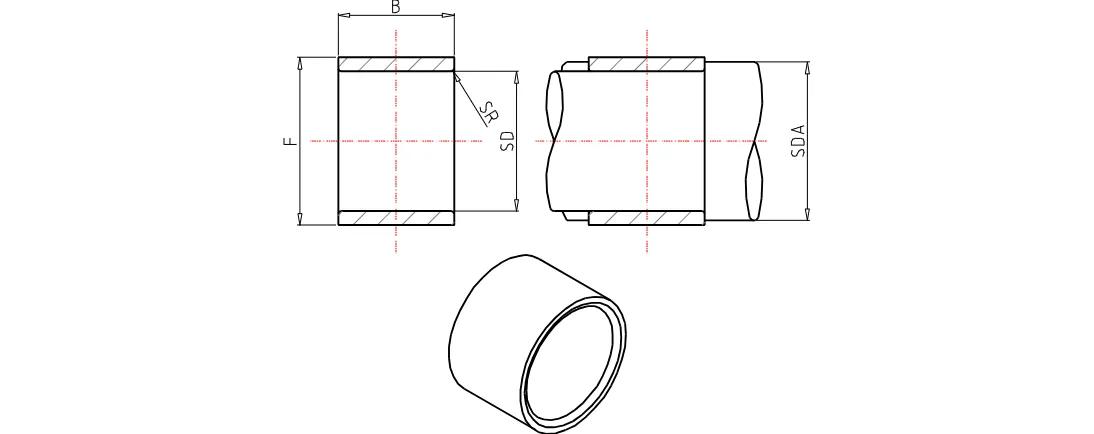

IRT3520 Dimensions and Material Specification
- Shaft diameter: 35 mm
- Inside diameter: 35 mm
- Outer diameter: 40 mm
- Width: 20.5 mm
- rs minimum: 0.6 mm
- da minimum: 39 mm
- da maximum: 39.5 mm
- Material: High carbon chrome steel, also described in the product title as high carbon steel
- Mass: 46.5 g
What material and size data are provided for this inner ring?
The supplied data lists the bearing material as high carbon chrome steel. The ring has a 35 mm inside diameter, 40 mm outer diameter, and 20.5 mm width, with a recorded mass of 46.5 g.
IKO IRT3520 Compatibility Information
The product data identifies assembly compatibility with selected IKO bearing part numbers. Compatibility should be checked against the intended bearing arrangement using the listed part references and dimensions.
Which bearings are listed for assembly with the IRT3520?
The listed assembled bearings are:
- TA 4020Z in the TA_Z and TAM grouping
- TLA 4020Z in the TLA_Z and TLAM grouping
No YT or YTL assembled bearing reference is listed for this inner ring.
