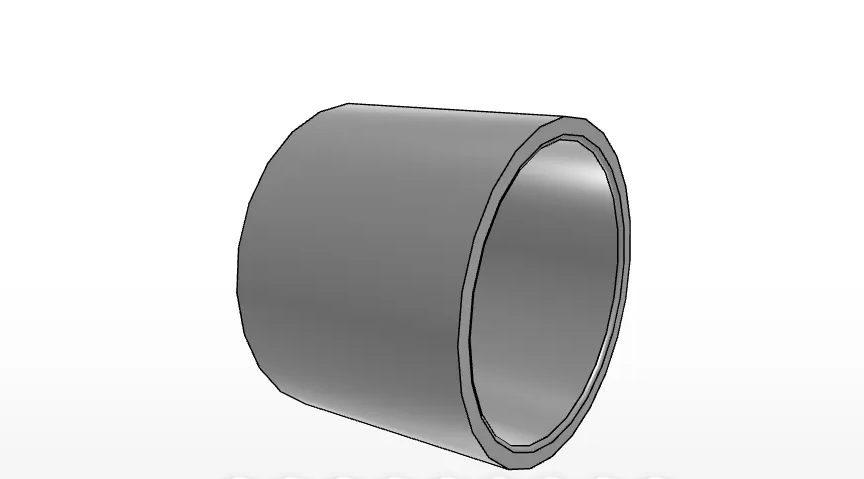

IKO IRT3530
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA4030Z
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT3530
Shaft Diameter
35
mm
Inside Diameter
35
mm
Outer Diameter
40
mm
Width
30.5
mm
rs min.
0.6
mm
da min
39
mm
da max
39.5
mm
Assembled bearings (TA_Z, TAM)
TA 4030Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
-
Mass
69
g
IKO IRT3530 Inner Ring Offers a Metric 35 mm Bore
The IKO IRT3530 is an inner ring in the IKO Inner Rings series. It has a shaft and inside diameter of 35 mm, an outer diameter of 40 mm, and a width of 30.5 mm. The listed bearing material is high carbon chrome steel, and the product title identifies it for shell-type use with TA4030Z assembly.
What are the basic dimensions of the IRT3530?
- Model: IRT3530
- Brand: IKO
- Series: Inner Rings
- Shaft / inside diameter: 35 mm
- Outer diameter: 40 mm
- Width: 30.5 mm
IKO IRT3530 Includes Listed Edge and Shoulder Dimensions
The product data lists rs min. as 0.6 mm. It also provides da min at 39 mm and da max at 39.5 mm. These values can be reviewed alongside the mating component and installation requirements before selection.
What related dimensions should be checked?
- rs min.: 0.6 mm
- da min: 39 mm
- da max: 39.5 mm
- Mass: 69 g
IKO IRT3530 Is Identified for TA4030Z Assembly
The supplied data identifies the IRT3530 as an inner ring to assemble with TA4030Z. Under assembled bearings for the TA_Z and TAM groups, the listed matching bearing is TA 4030Z. No assembled bearing is listed for the TLA_Z, TLAM, YT, or YTL groups.
Which assembled bearing is listed for the IRT3530?
- TA_Z / TAM group: TA 4030Z
- TLA_Z / TLAM group: none listed
- YT / YTL group: none listed
