IKO IRT3540
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA4040Z
IKO IRT3540 Inner Ring for Metric Bearing Assembly
The IKO IRT3540 is an inner ring in the Inner Rings product series, categorized under Brand > IKO > Inner Rings. It is designed as a metric inner ring for shell-type assembly and is specified to assemble with TA4040Z.
What bearing type and model is this product?
This product is an IKO IRT3540 inner ring. The supplied order number is IRT3540, and the bearing type is listed as Inner Rings.

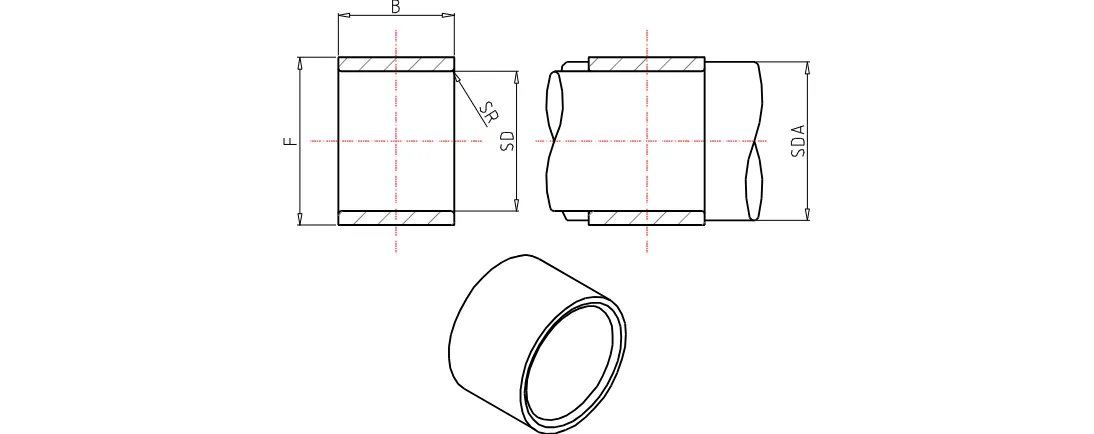

IKO IRT3540 Dimensions and Material Specification
The IRT3540 has a shaft diameter and inside diameter of 35 mm, an outer diameter of 40 mm, and a width of 40.5 mm. The bearing material is listed as high carbon chrome steel; the product title also identifies the component as high carbon steel.
- Shaft diameter: 35 mm
- Inside diameter: 35 mm
- Outer diameter: 40 mm
- Width: 40.5 mm
- rs min.: 0.6 mm
- da min.: 39 mm
- da max.: 39.5 mm
- Mass: 91.5 g
What material and weight are specified for the IRT3540?
The list data identifies the bearing material as high carbon chrome steel. The listed mass is 91.5 g, shown in the product data as 91,5 g.
IKO IRT3540 Compatibility and Product Identification
The supplied product data identifies the IRT3540 as an inner ring intended for assembly with TA 4040Z within the TA_Z and TAM assembled-bearing reference. No assembled bearing is listed for the TLA_Z, TLAM, YT, or YTL references.
- Model: IRT3540
- Brand: IKO
- Series: Inner Rings
- Category path: Brand > IKO > Inner Rings
- Assembled bearing reference: TA 4040Z
Which assembled bearing is referenced with the IRT3540?
The product data lists TA 4040Z under assembled bearings for TA_Z and TAM. The TLA_Z, TLAM, YT, and YTL assembled-bearing fields contain no listed match.
