IKO IRT4512
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA5012Z

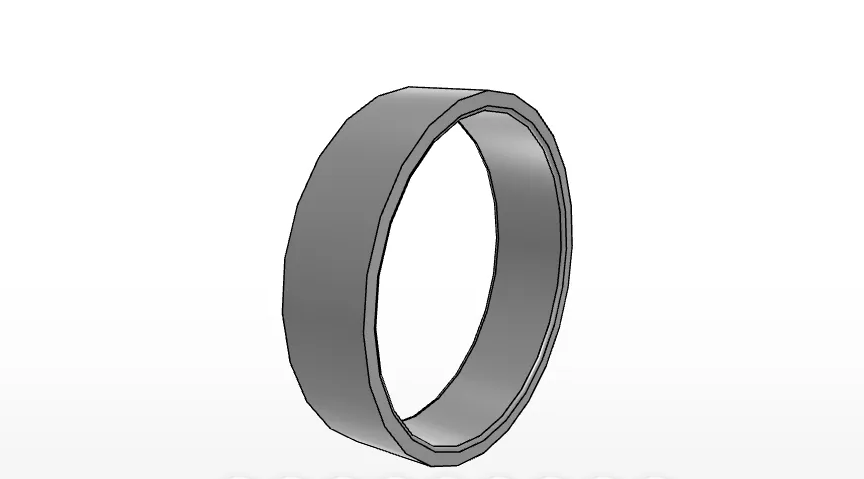

The IKO IRT4512 Is a Metric Inner Ring
What type of bearing component is the IRT4512?
The IKO IRT4512 belongs to the IKO Inner Rings product series and is listed as a metric inner ring for shell-type use. It is intended to assemble with TA5012Z according to the supplied product data.
- Brand: IKO
- Model/order number: IRT4512
- Bearing type: Inner ring
- Category: Brand > IKO > Inner Rings
The IRT4512 Has Documented Metric Dimensions
What dimensions and related values are provided for the IRT4512?
The supplied specifications identify the inner ring with a 45 mm shaft diameter, 45 mm inside diameter, 50 mm outside diameter, and 12.5 mm width. Additional listed values include an rs minimum of 0.6 mm, da minimum of 49 mm, da maximum of 49.5 mm, and a mass of 36 g.
- Shaft/inside diameter: 45 mm
- Outside diameter: 50 mm
- Width: 12.5 mm
- rs min.: 0.6 mm
- da min.: 49 mm
- da max.: 49.5 mm
The IRT4512 Uses High Carbon Steel Construction Data
What material and assembly information is stated for the IRT4512?
The product title describes the IRT4512 as high carbon steel, while the structured bearing material field lists high carbon chrome steel. The assembly data lists TA 5012Z under assembled bearings for the TA_Z and TAM groups; no assembled bearing is listed for the TLA_Z, TLAM, YT, or YTL groups.
- Material description: High carbon steel; high carbon chrome steel in structured data
- Design use: Shell type
- Listed assembled bearing: TA 5012Z
- Mass: 36 g
