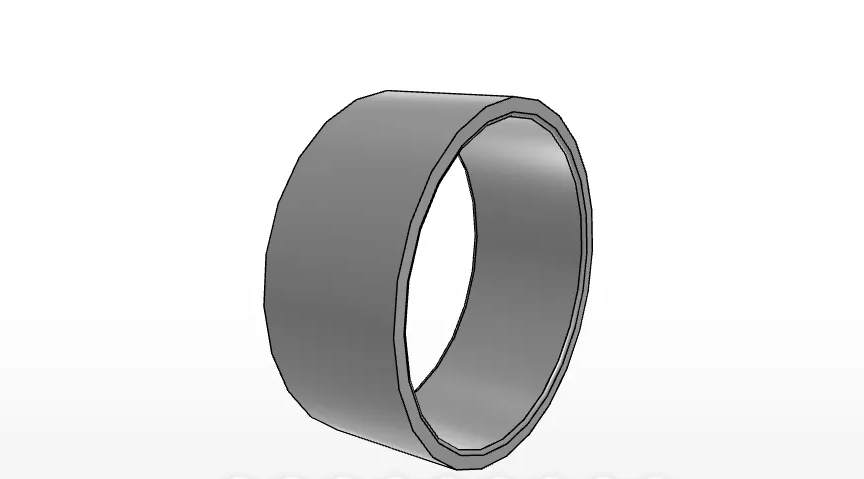

IKO IRT4520
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA5020Z and TLA5020Z
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT4520
Shaft Diameter
45
mm
Inside Diameter
45
mm
Outer Diameter
50
mm
Width
20.5
mm
rs min.
0.6
mm
da min
49
mm
da max
49.5
mm
Assembled bearings (TA_Z, TAM)
TA 5020Z
Assembled bearings (TLA_Z, TLAM)
TLA 5020Z
Assembled bearings (YT, YTL)
-
Mass
59
g
The IKO IRT4520 Is a Metric Inner Ring
What type of bearing component is the IRT4520?
The IKO IRT4520 is part of the IKO Inner Rings product series. It is cataloged as a metric inner ring for shell type assembly and is listed for assembly with TA5020Z and TLA5020Z.
- Brand: IKO
- Series: Inner Rings
- Order number: IRT4520
- Category: Brand > IKO > Inner Rings
The IRT4520 Provides Stated Metric Dimensions for Selection
What dimensions and related values are provided for the IKO IRT4520?
The supplied product data lists the following dimensions and assembly reference values. Use these measurements to compare the ring with your application requirements.
- Shaft diameter: 45 mm
- Inside diameter: 45 mm
- Outer diameter: 50 mm
- Width: 20.5 mm
- rs minimum: 0.6 mm
- da minimum: 49 mm
- da maximum: 49.5 mm
The IRT4520 Uses High Carbon Chrome Steel and Matches Listed Bearings
What material and assembled bearing references are specified for the IRT4520?
The bearing material is listed as high carbon chrome steel, and the product description identifies the ring as high carbon steel. The supplied data identifies matching assembled bearing references and a mass value.
- TA_Z / TAM reference: TA 5020Z
- TLA_Z / TLAM reference: TLA 5020Z
- YT / YTL reference: none listed
- Mass: 59 g
