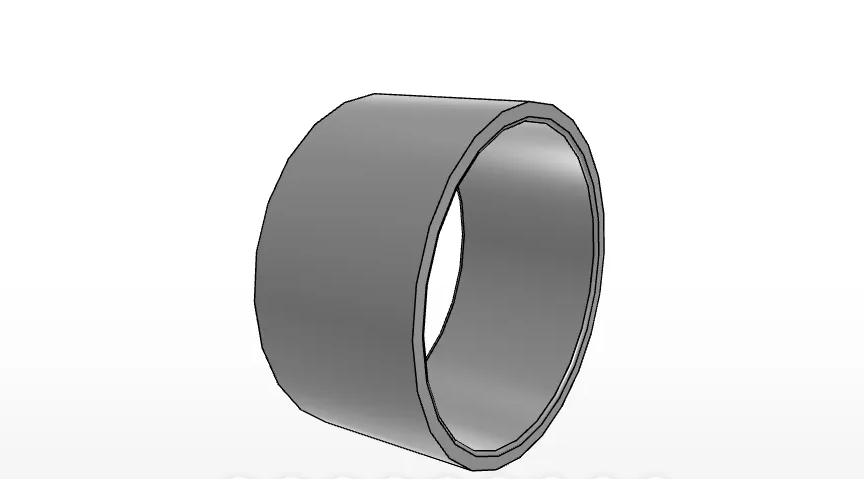

IKO IRT4525
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA5025Z, TLA5025Z
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT4525
Shaft Diameter
45
mm
Inside Diameter
45
mm
Outer Diameter
50
mm
Width
25.5
mm
rs min.
0.6
mm
da min
49
mm
da max
49.5
mm
Assembled bearings (TA_Z, TAM)
TA 5025Z
Assembled bearings (TLA_Z, TLAM)
TLA 5025Z
Assembled bearings (YT, YTL)
-
Mass
73
g
IKO IRT4525 Inner Ring Overview
What is the IKO IRT4525?
The IKO IRT4525 is an inner ring in the IKO Inner Rings product series. It is listed for shell-type assembly and is made of high carbon chrome steel.
- Brand: IKO
- Model: IRT4525
- Bearing type: Inner Ring
- Category: Inner Rings
IRT4525 Dimensions and Specifications
What dimensions are provided for the IRT4525?
The supplied product data lists the following metric dimensions for the IRT4525:
- Shaft diameter: 45 mm
- Inside diameter: 45 mm
- Outer diameter: 50 mm
- Width: 25.5 mm
- rs minimum: 0.6 mm
- da minimum: 49 mm
- da maximum: 49.5 mm
- Mass: 73 g
Compatible Bearing Assembly Information
Which assembled bearings are referenced for the IRT4525?
The product data identifies the TA 5025Z under assembled bearings for the TA_Z, TAM group and TLA 5025Z under the TLA_Z, TLAM group. No assembled bearing is listed for the YT, YTL group. The detail description also states that the ring is to assemble with TA5025Z and TLA5025Z.
