IKO IRT4530
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA5030Z

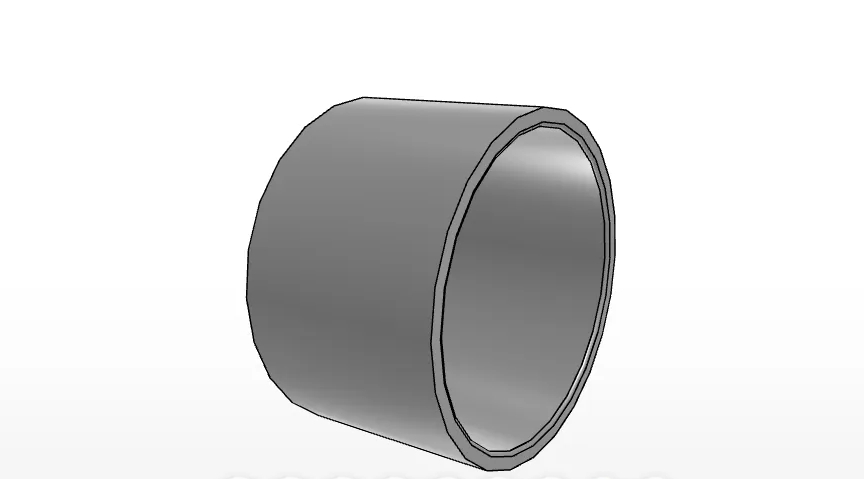

IKO IRT4530 Inner Ring for Shell Type Assembly
The IKO IRT4530 is an inner ring in the IKO Inner Rings series. It is designed as a metric component to assemble with the TA 5030Z bearing. The order number is IRT4530, and the stated mass is 87.5 g.
What is the IKO IRT4530?
The IRT4530 is an inner ring listed under Brand > IKO > Inner Rings. It is specified for shell type use and is made from high carbon chrome steel according to the supplied product data.
IKO IRT4530 Dimensions and Material Details
The IRT4530 has a shaft diameter and inside diameter of 45 mm, an outer diameter of 50 mm, and a width of 30.5 mm. Additional supplied measurements include:
- rs min.: 0.6 mm
- da min.: 49 mm
- da max.: 49.5 mm
- Bearing material: High carbon chrome steel
What dimensions and material are provided for the IRT4530?
The product data identifies the ring as metric, with a 45 mm bore, 50 mm outer diameter, 30.5 mm width, and high carbon chrome steel construction. Use these values when checking compatibility with the specified mating component.
IKO IRT4530 Assembly Identification
The supplied data associates the IRT4530 with the TA_Z, TAM assembled bearing designation TA 5030Z. No assembled bearing references are listed for the TLA_Z/TLAM or YT/YTL groups in the provided data.
Which assembled bearing is referenced with the IRT4530?
The IRT4530 is listed for assembly with TA 5030Z. The compatibility fields for TLA_Z, TLAM, YT, and YTL assemblies show no listed match, so compatibility beyond the supplied TA 5030Z reference should not be inferred.
