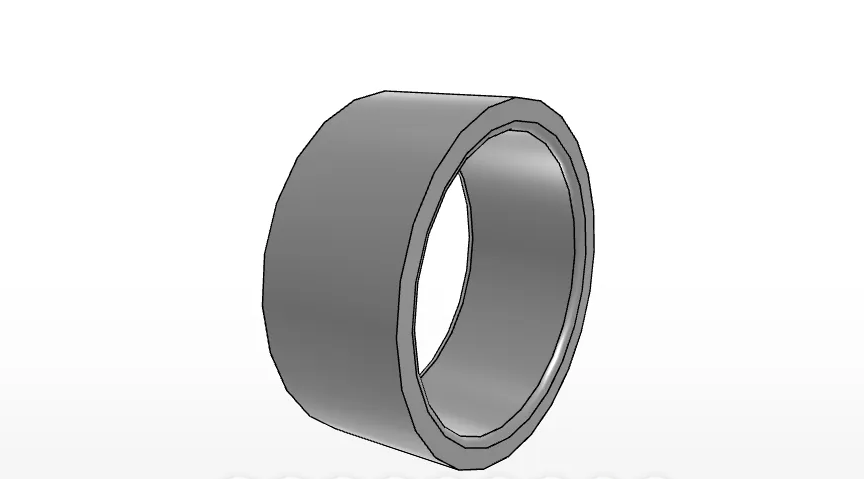

IKO IRT5025
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA6025Z
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT5025
Shaft Diameter
50
mm
Inside Diameter
50
mm
Outer Diameter
60
mm
Width
25.5
mm
rs min.
1.5
mm
da min
58
mm
da max
59.0
mm
Assembled bearings (TA_Z, TAM)
TA 6025Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
-
Mass
169
g
IKO IRT5025 Inner Ring Specifications
What are the basic dimensions of the IKO IRT5025?
The IKO IRT5025 is a metric inner ring in the IKO Inner Rings series. Its supplied dimensions are a 50 mm shaft diameter, 50 mm inside diameter, 60 mm outer diameter, and 25.5 mm width.
- Model: IRT5025
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner Rings
- Mass: 169 g
Material and Compatibility Details
What material and assembly information is provided?
The IRT5025 is listed as high carbon steel in the detailed title and high carbon chrome steel under the bearing material field. It is intended for shell type use and is specified to assemble with TA 6025Z.
- Material: High carbon chrome steel
- Design: Metric inner ring for shell type
- Assembled bearing listed: TA 6025Z
- Other listed assembly references: TLA_Z, TLAM, YT, and YTL fields show no matching part
Technical Measurement Reference
What additional dimensional values are included in the product data?
The supplied technical data includes edge and related dimension references for the IRT5025. These values can be checked against the mating component or drawing before assembly.
- rs min.: 1.5 mm
- da min.: 58 mm
- da max: 59.0 mm
- Primary dimensions: 50 mm inside diameter, 60 mm outer diameter, and 25.5 mm width
Verify all dimensions and assembly suitability using the relevant bearing arrangement before installation.
