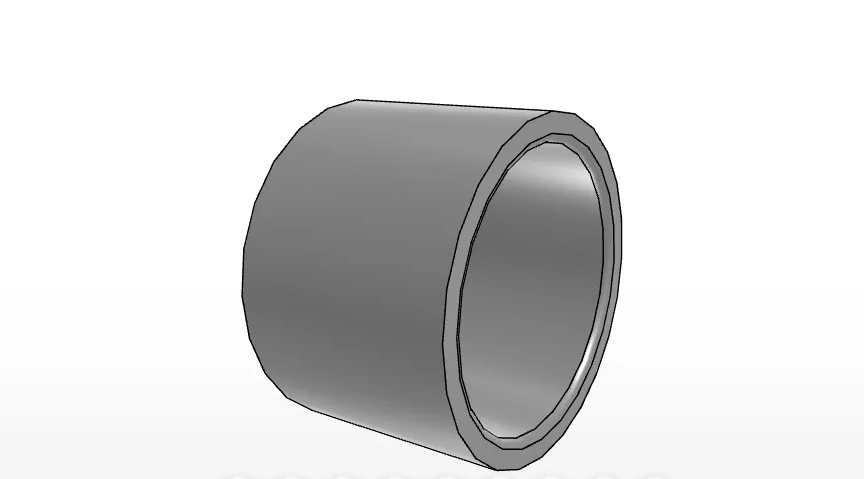

IKO IRT5040
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA6040Z
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT5040
Shaft Diameter
50
mm
Inside Diameter
50
mm
Outer Diameter
60
mm
Width
40.5
mm
rs min.
1.5
mm
da min
58
mm
da max
59.0
mm
Assembled bearings (TA_Z, TAM)
TA 6040Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
-
Mass
270
g
IKO IRT5040 Inner Ring Provides a Metric Inner Ring Option
What is the IRT5040?
The IKO IRT5040 is an inner ring in the IKO Inner Rings series. It is listed as a metric inner ring for shell type and is intended to assemble with TA6040Z.
- Brand: IKO
- Model: IRT5040
- Bearing type: Inner Rings
- Category: Brand > IKO > Inner Rings
IRT5040 Dimensions and Material Match the Supplied Product Data
What dimensions and material are specified for IRT5040?
The supplied data identifies the inner ring as high carbon chrome steel, also described in the title information as high carbon steel. Its dimensions are recorded as follows:
- Shaft diameter: 50 mm
- Inside diameter: 50 mm
- Outer diameter: 60 mm
- Width: 40.5 mm
- rs min.: 1.5 mm
- da min: 58 mm
- da max: 59.0 mm
- Mass: 270 g
IRT5040 Is Listed for Assembly with TA6040Z
Which assembled bearing is identified for the IRT5040?
The product data lists TA 6040Z under assembled bearings for TA_Z and TAM types. The listed fields for TLA_Z, TLAM, YT, and YTL show no assembled bearing reference. Selection should be based on compatibility with the specified mating bearing and the dimensions above.
- Confirm the required shaft diameter is 50 mm.
- Verify the 60 mm outer diameter and 40.5 mm width for the installation.
- Use the listed mating reference, TA 6040Z, when checking assembly requirements.
