IKO IRT5545
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TAW6545Z

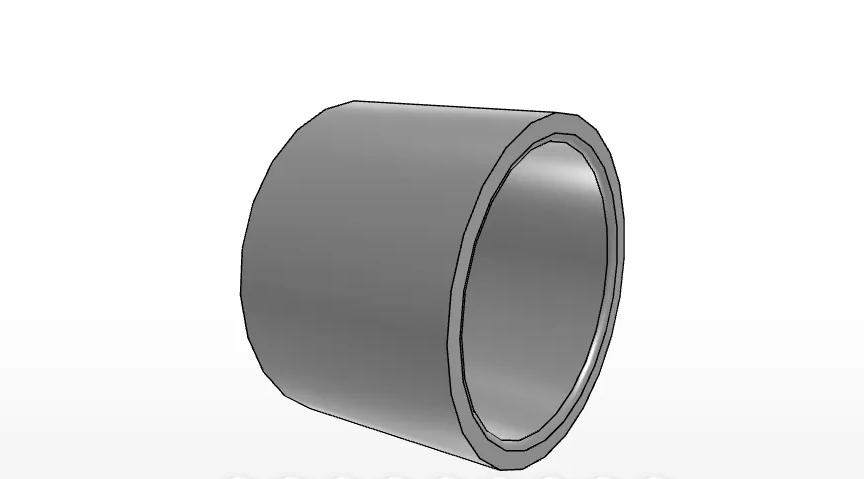

IKO IRT5545 Inner Ring Overview
The IKO IRT5545 is a metric inner ring in the IKO Inner Rings series. It is made of high carbon chrome steel and is described for assembly with TAW6545Z.
What type of bearing component is the IRT5545?
The IRT5545 is classified as an Inner Ring in the IKO product range. It belongs to the category path Brand > IKO > Inner Rings.
IRT5545 Dimensions and Specifications
- Order Number: IRT5545
- Shaft Diameter: 55 mm
- Inside Diameter: 55 mm
- Outer Diameter: 65 mm
- Width: 45.5 mm
- rs min.: 1.5 mm
- da min.: 63 mm
- da max.: 63.5 mm
- Mass: 330 g
What are the stated IRT5545 measurements?
The supplied data lists a 55 mm inside diameter, 65 mm outside diameter, and 45.5 mm width. The minimum corner radius is 1.5 mm, and the listed mass is 330 g.
Material and Assembly Information
The IRT5545 inner ring is specified as high carbon chrome steel. The product description identifies it as a metric inner ring for shell type and intended for assembly with TAW6545Z.
Which assembled bearing is referenced for the IRT5545?
The supplied product data lists TAW 6545Z under assembled bearings for the TA_Z and TAM groups. The fields for TLA_Z, TLAM, YT, and YTL assembled bearings are shown with no listed value.
