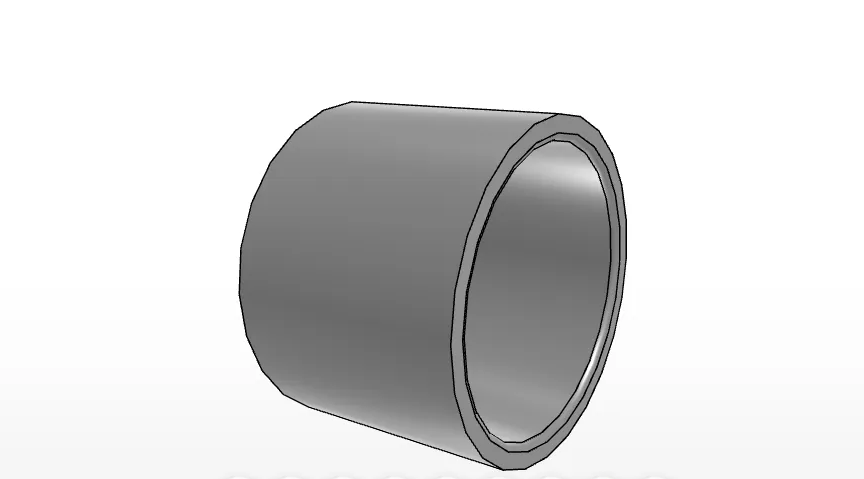

IKO IRT6050
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TAW7050Z
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT6050
Shaft Diameter
60
mm
Inside Diameter
60
mm
Outer Diameter
70
mm
Width
50.5
mm
rs min.
1.5
mm
da min
68
mm
da max
68.5
mm
Assembled bearings (TA_Z, TAM)
TAW 7050Z
Assembled bearings (TLA_Z, TLAM)
-
Assembled bearings (YT, YTL)
-
Mass
395
g
IKO IRT6050 Inner Ring Specifications
What type and size is the IRT6050?
The IKO IRT6050 is a metric inner ring in the IKO Inner Rings series. Its listed dimensions are a 60 mm shaft diameter, 60 mm inside diameter, 70 mm outside diameter, and 50.5 mm width.
- Model: IRT6050
- Brand: IKO
- Bearing type: Inner Ring
- rs minimum: 1.5 mm
- da minimum: 68 mm
- da maximum: 68.5 mm
- Mass: 395 g
IKO IRT6050 Material and Assembly Details
What material and assembled bearing information are listed?
The product data identifies the bearing material as High Carbon Chrome Steel, while the detail title describes the ring as high carbon steel. The IRT6050 is intended to assemble with TAW7050Z.
- Product series: Inner Rings
- Category: Brand > IKO > Inner Rings
- Configuration: Metric inner ring for shell type
- TA_Z / TAM assembly listing: TAW 7050Z
- TLA_Z / TLAM listing: Not listed
- YT / YTL listing: Not listed
IKO IRT6050 Product Identification
How can the IRT6050 be identified from the supplied data?
The component is identified by order number and model IRT6050. Use the listed dimensions, assembly reference, and IKO Inner Rings classification when checking this part against the provided product information.
- Confirm the order number is IRT6050.
- Verify the bore is 60 mm, outside diameter is 70 mm, and width is 50.5 mm.
- Review the listed assembly reference, TAW 7050Z.
