IKO IRT710
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA1010Z, TLA1010Z
IKO IRT710 Metric Inner Ring for Shell-Type Assembly
The IKO IRT710 is listed in the IKO Inner Rings product series under the category path Brand > IKO > Inner Rings. It is described as a metric inner ring for shell-type use, made from high carbon steel and intended for assembly with TA1010Z or TLA1010Z bearings.
What type of component is the IRT710?
The IRT710 is an inner ring supplied by IKO. The product listing identifies its bearing type as Inner Rings and describes it as a metric component for shell-type assembly.

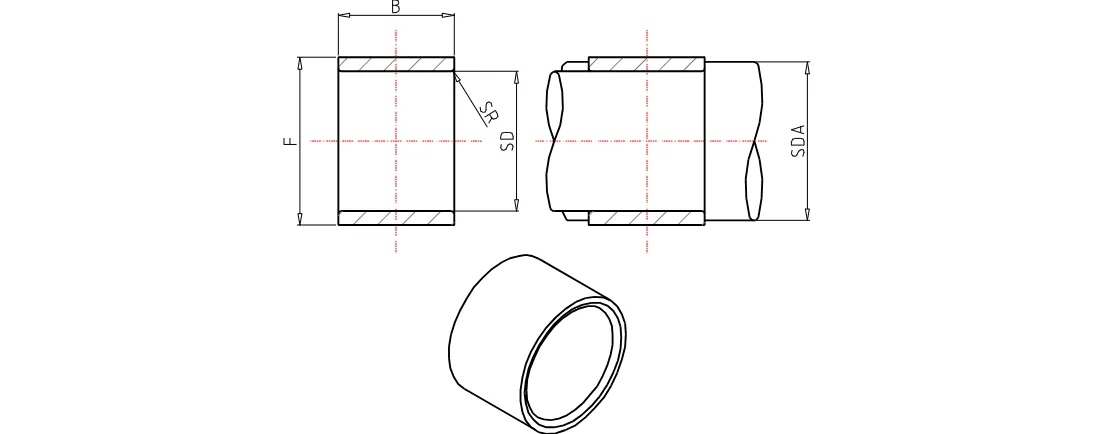

IKO IRT710 Dimensions and Assembly Information
The listed dimensional data for the IKO IRT710 includes a shaft diameter and inside diameter of 7 mm, an outer diameter of 10 mm, and a width of 10.5 mm. Additional listed values include rs minimum of 0.3 mm, da minimum of 9 mm, and da maximum of 9.7 mm.
- Order Number: IRT710
- Shaft Diameter: 7 mm
- Inside Diameter: 7 mm
- Outer Diameter: 10 mm
- Width: 10.5 mm
- rs min.: 0.3 mm
- da min.: 9 mm
- da max.: 9.7 mm
Which assembled bearings are listed for the IRT710?
The product data lists the IRT710 for assembly with TA 1010Z from the TA_Z and TAM groups and TLA 1010Z from the TLA_Z and TLAM groups. No YT or YTL assembled bearing is listed.
IKO IRT710 Material and Mass Details
The IKO IRT710 is listed with a bearing material of high carbon chrome steel; the product title also refers to high carbon steel. Its listed mass is 3.2 g, shown in the supplied data as 3,2 g.
- Brand: IKO
- Model: IRT710
- Series: Inner Rings
- Material: High Carbon Chrome Steel
- Mass: 3.2 g
What material and weight information is available for the IRT710?
The supplied listing identifies the inner ring material as high carbon chrome steel and gives the mass as 3.2 g. No additional material grades, certifications, load ratings, stock details, or application claims are provided in the product data.
