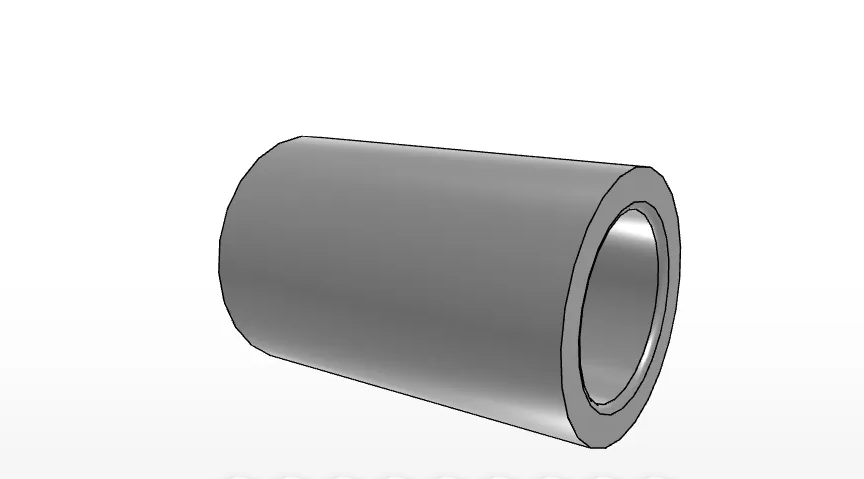

IKO IRT715
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA1015Z, TLA1015Z
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT715
Shaft Diameter
7
mm
Inside Diameter
7
mm
Outer Diameter
10
mm
Width
15.5
mm
rs min.
0.3
mm
da min
9
mm
da max
9.7
mm
Assembled bearings (TA_Z, TAM)
TA 1015Z
Assembled bearings (TLA_Z, TLAM)
TLA 1015Z
Assembled bearings (YT, YTL)
-
Mass
4,8
g
The IKO IRT715 Is a Metric Inner Ring
What type of component is the IRT715?
The IKO IRT715 belongs to the IKO Inner Rings product series. It is listed as a metric inner ring for shell type and is supplied under order number IRT715.
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner Rings
- Category: Brand > IKO > Inner Rings
The IRT715 Has Defined Metric Dimensions and Mass
What measurements are provided for the IRT715?
The product data lists the following dimensional details for the IRT715:
- Shaft diameter: 7 mm
- Inside diameter: 7 mm
- Outer diameter: 10 mm
- Width: 15.5 mm
- rs min.: 0.3 mm
- da min.: 9 mm
- da max.: 9.7 mm
- Mass: 4.8 g
The IRT715 Uses High Carbon Steel and Matches Listed Assemblies
What material and assembled bearing references are specified?
The IRT715 is described as an inner ring made from high carbon steel; the list data identifies the bearing material as high carbon chrome steel. The stated assembly references are:
- TA_Z, TAM: TA 1015Z
- TLA_Z, TLAM: TLA 1015Z
- YT, YTL: no reference listed
Use the listed assembly references when checking compatibility for the IRT715.
