IKO IRT810
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TLA1210Z, YTL1210

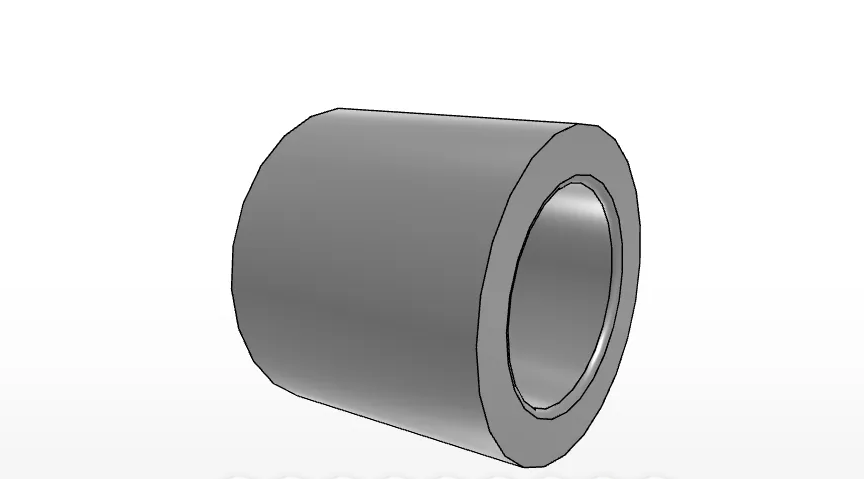

IKO IRT810 Inner Ring
The IKO IRT810 is an inner ring in the IKO Inner Rings series. It is a metric component specified for shell-type assembly and made from high carbon chrome steel.
What bearing type and brand is the IRT810?
The IRT810 is an IKO-branded inner ring. It belongs to the Inner Rings product category and is supplied under order number IRT810.
IRT810 Dimensions and Mass
The IRT810 has a shaft diameter of 8 mm, an inside diameter of 8 mm, an outer diameter of 12 mm, and a width of 10.5 mm. Its listed mass is 5.1 g.
- rs min.: 0.3 mm
- da min.: 10 mm
- da max.: 11.0 mm
- Mass: 5.1 g
What are the main IRT810 measurements?
The main measurements are an 8 mm shaft and inside diameter, a 12 mm outer diameter, and a 10.5 mm width. The listed shoulder diameter range is 10 mm minimum to 11.0 mm maximum, with a minimum fillet dimension of 0.3 mm.
IRT810 Assembly Compatibility
Product data identifies the IRT810 for assembly with TLA1210Z and YTL1210 bearings. The recorded compatible assembled bearing groups include TLA_Z/TLAM and YT/YTL types.
- TLA_Z / TLAM assembly: TLA 1210Z
- YT / YTL assembly: YTL 1210
Which bearings is the IRT810 intended to assemble with?
The supplied data lists the IRT810 for assembly with the TLA 1210Z and YTL 1210. Compatibility should be checked against the intended bearing arrangement using these specified part references.
