IKO IRT812
Inner Ring, Metric, For Shell Type, High Carbon Steel, To Assemble with TA1212Z, TLA1212Z, and YT1212
(BRAND)：IKO
(Availability)：In Stock
Order Number
IRT812
Shaft Diameter
8
mm
Inside Diameter
8
mm
Outer Diameter
12
mm
Width
12.5
mm
rs min.
0.3
mm
da min
10
mm
da max
11.0
mm
Assembled bearings (TA_Z, TAM)
TA 1212Z
Assembled bearings (TLA_Z, TLAM)
TLA 1212Z
Assembled bearings (YT, YTL)
YT 1212
Mass
6
g
IKO IRT812 Inner Ring for Metric Bearing Assemblies
What is included in the IKO IRT812 product identification?
The IKO IRT812 is identified as an inner ring in the IKO Inner Rings product series. Its category path is Brand > IKO > Inner Rings, and the supplied product title describes it as a metric inner ring for shell-type assembly.

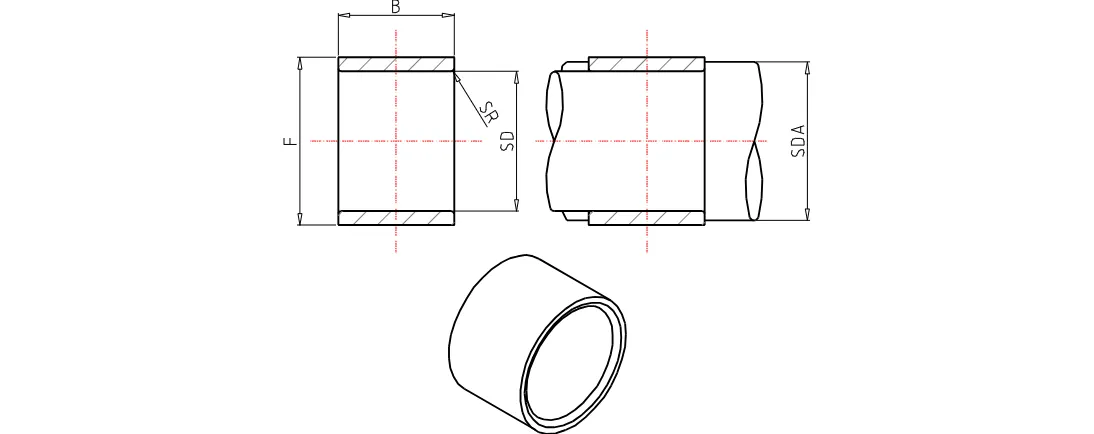

IRT812 Dimensions and Material Specification
What dimensions and material are provided for the IRT812?
- Shaft diameter: 8 mm
- Inside diameter: 8 mm
- Outer diameter: 12 mm
- Width: 12.5 mm
- rs min.: 0.3 mm
- da min.: 10 mm
- da max.: 11.0 mm
- Material: High carbon chrome steel
- Mass: 6 g
IRT812 Listed Compatibility and Reference Details
Which assembled bearings are listed for use with the IRT812?
The supplied data lists the IRT812 for assembly with the following bearings: TA1212Z, TLA1212Z, and YT1212. Assembly suitability should be checked against the mating bearing and shaft requirements using these listed references.
