IKO LRB101416
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR142216

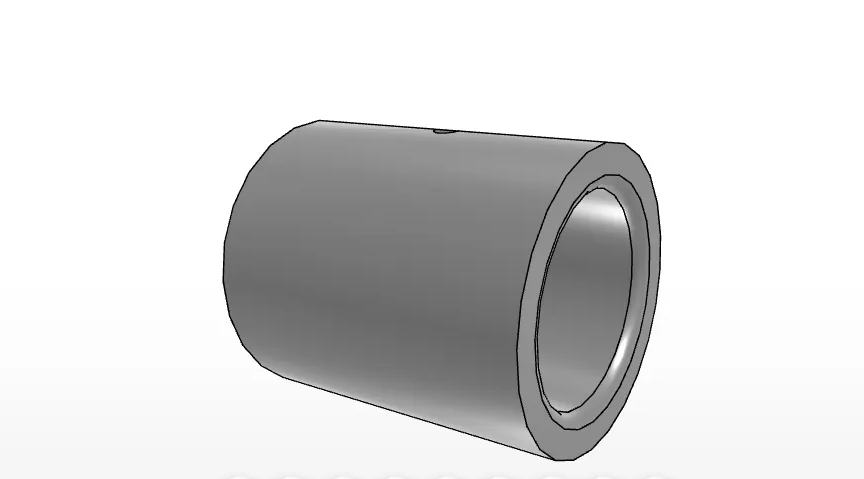

IKO LRB101416 Inner Ring for Inch Bearing Assembly
The IKO LRB101416 is an inner ring in the IKO Inner Rings product series, categorized under Brand > IKO > Inner Rings. It is designed for general usage as an inch-type inner ring and is intended to assemble with the BR 142216 bearing. The ring includes an oil hole and has a listed mass of 37.5 g.
What bearing type and brand does the LRB101416 belong to?
The LRB101416 is an Inner Ring manufactured by IKO. It forms part of the IKO Inner Rings series and is listed for assembly with BR 142216.

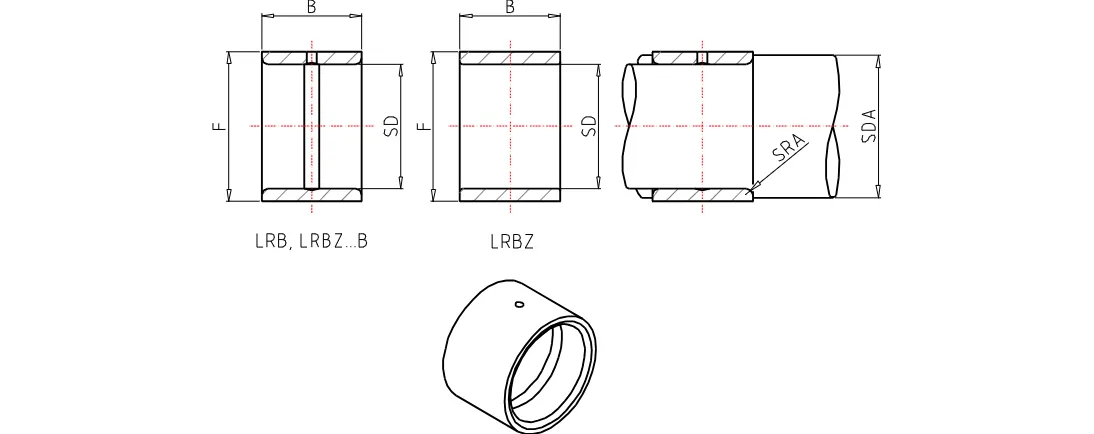

LRB101416 Dimensions and Material Specifications
The supplied product data lists the following dimensions for the LRB101416 inner ring:
- Shaft diameter: 15.88 mm
- Inside diameter: 15.88 mm
- Outside diameter: 22.23 mm
- Width: 25.65 mm
- da minimum: 21.0 mm
- da maximum: 21.2 mm
- ras maximum: 1.0 mm
The material is listed as high carbon chrome steel in the specification table and described as high carbon steel in the product title information.
What are the bore, outside diameter, and width of the LRB101416?
The LRB101416 has a 15.88 mm inside diameter and shaft diameter, a 22.23 mm outside diameter, and a 25.65 mm width. Additional listed values include da min 21.0 mm, da max 21.2 mm, and ras max 1.0 mm.
LRB101416 Assembly and Identification Details
The product title identifies the LRB101416 as an inch inner ring for general usage, made from high carbon steel, provided with an oil hole, and intended to assemble with BR142216. These details can be used to confirm the order number and intended assembly relationship.
Which bearing is specified for assembly with the LRB101416?
The supplied data identifies BR 142216 as the assembled bearing for the LRB101416. It also states that the inner ring includes an oil hole and is intended for general usage.
