IKO LRB121616
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR162416

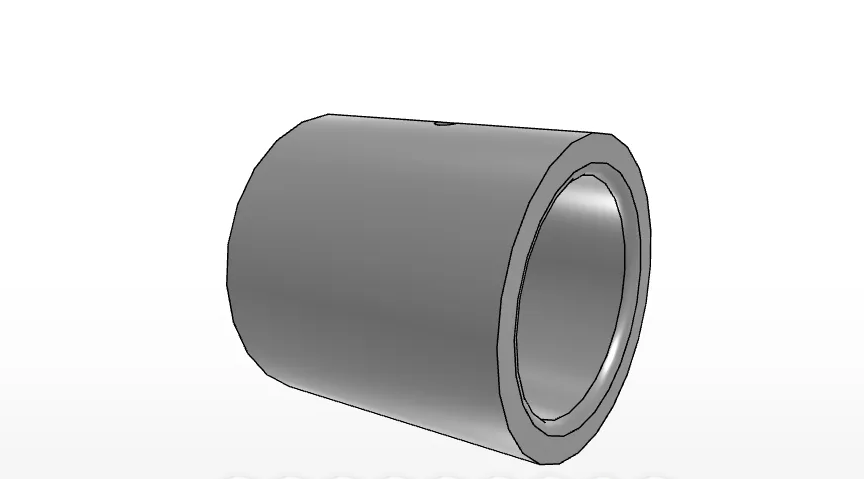

The IKO LRB121616 Is an Inch Inner Ring for Bearing Assembly
The IKO LRB121616 is part of the IKO Inner Rings product series and is listed within Brand > IKO > Inner Rings. It is an inch-type inner ring designed to assemble with BR162416 bearings and includes an oil hole.
What bearing type and brand does the LRB121616 represent?
The model is an IKO inner ring. The supplied product information identifies its bearing type as Inner Rings and states that it is intended for general usage.

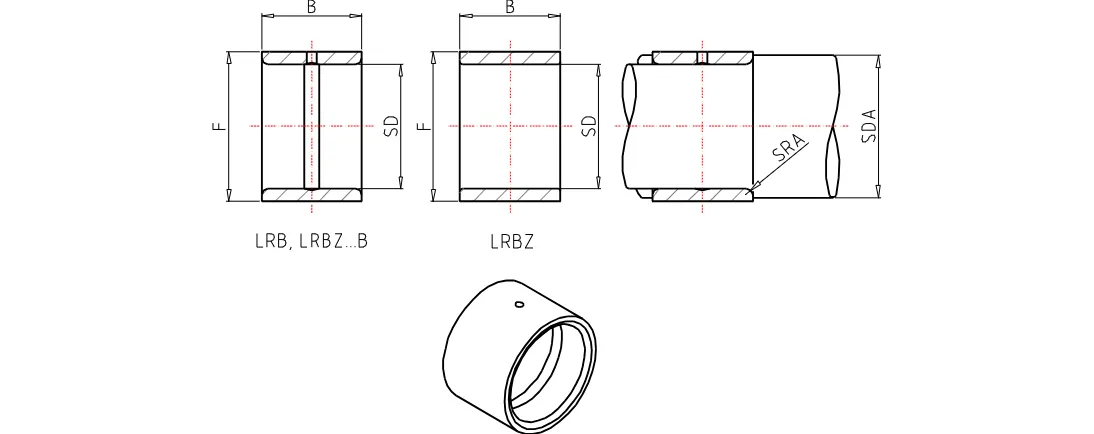

The LRB121616 Has Documented Bore, Outer Diameter, and Width Dimensions
- Shaft diameter: 19.05 mm
- Inside diameter: 19.05 mm
- Outer diameter: 25.40 mm
- Width: 25.65 mm
- Mass: 44.0 g
What additional dimensional values are provided for this inner ring?
The product data lists da min as 24.0 mm, da max as 24.4 mm, and ras max as 1.0 mm. These values can be checked against the mating assembly requirements.
The LRB121616 Uses High Carbon Steel and Is Identified for BR162416 Assembly
The supplied information describes the ring material as high carbon steel in the detailed product introduction and as high carbon chrome steel in the structured material field. The inner ring is specified to assemble with BR162416.
What should be confirmed before selecting the LRB121616?
Confirm the shaft size, housing or assembly dimensions, and the required mating BR162416 bearing against the listed 19.05 mm inside diameter, 25.40 mm outer diameter, and 25.65 mm width. The oil-hole feature should also match the intended lubrication arrangement.
