IKO LRB141816
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR182616
IKO LRB141816 Inner Ring for Needle Bearing Assembly
What is the LRB141816?
The IKO LRB141816 is an inch-series inner ring within the IKO Inner Rings product line. It is specified with an oil hole and is intended to assemble with the BR182616 bearing. The listed bearing material is high carbon chrome steel; the descriptive product data also refers to it as high carbon steel.
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner Rings
- Order number: LRB141816
- Design feature: With oil hole

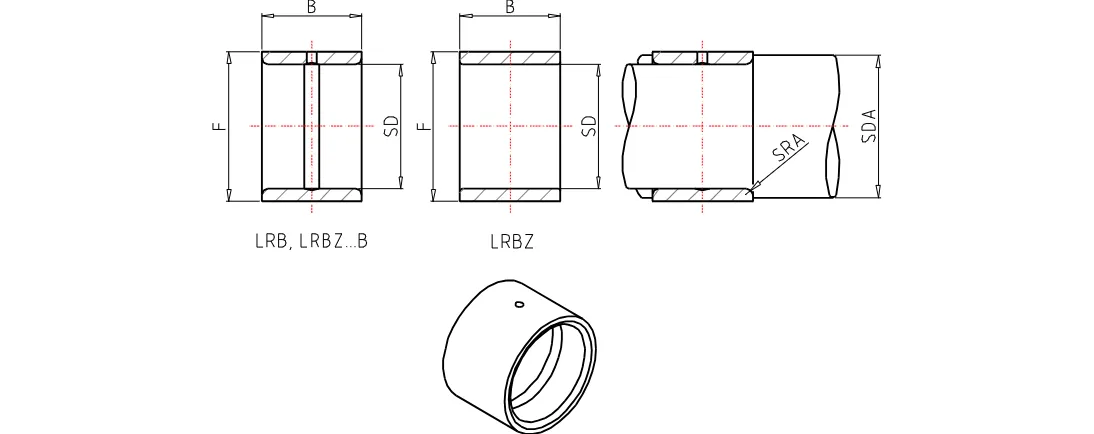

LRB141816 Dimensions and Specification Data
What dimensions are provided for this inner ring?
The supplied product data lists the following measurements for the LRB141816. These values should be checked against the mating shaft and assembled bearing requirements before selection.
- Shaft diameter / inside diameter: 22.23 mm
- Outer diameter: 28.58 mm
- Width: 25.65 mm
- da minimum: 27.0 mm
- da maximum: 27.5 mm
- ras maximum: 1.0 mm
- Mass: 50.0 g
Assembly Relationship With BR182616
Which assembled bearing is identified in the product data?
The product data identifies BR 182616 as the assembled bearing for use with the LRB141816 inner ring. Additional assembly entries in the supplied data are blank. The category path for this item is Brand > IKO > Inner Rings.
Because no stock status, load rating, tolerance class, certification, or performance guarantee is supplied, those details are not stated for this product.
