IKO LRB162016
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR202816

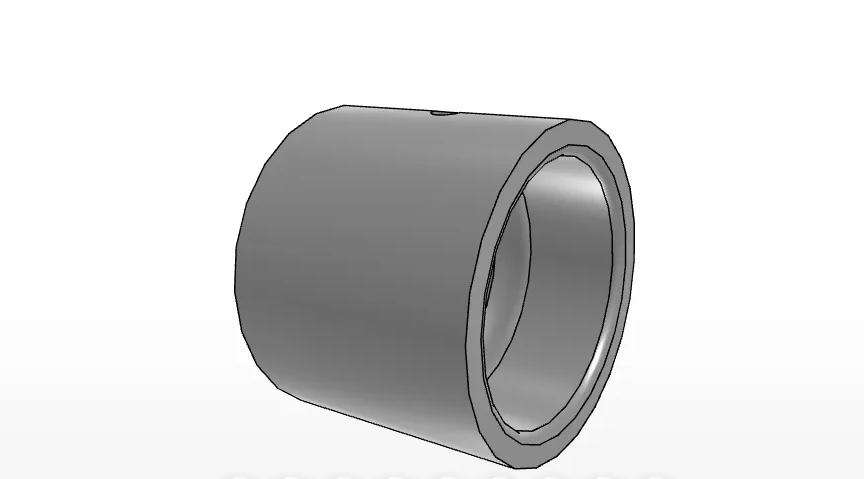

The IKO LRB162016 Is an Inner Ring for Bearing Assembly
The LRB162016 is an IKO inner ring in the Inner Rings series. It is an inch-type, general-usage inner ring made of high carbon steel and includes an oil hole. The product data identifies it for assembly with BR202816.
What bearing type is the LRB162016?
It is classified as an Inner Ring within the IKO Inner Rings product series and category path.

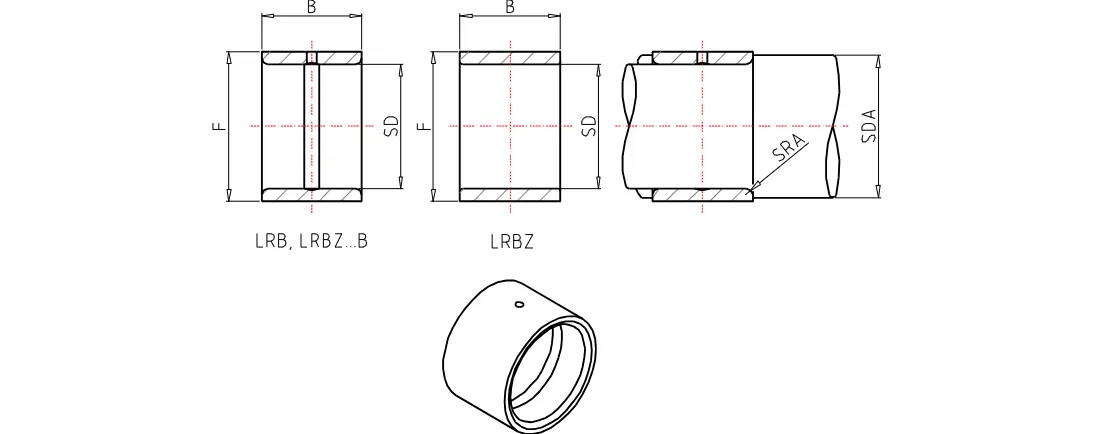

The LRB162016 Has Defined Shaft and Ring Dimensions
- Shaft diameter: 25.40 mm
- Inside diameter: 25.40 mm
- Outer diameter: 31.75 mm
- Width: 25.65 mm
- da minimum: 30.5 mm
- da maximum: 30.7 mm
- ras maximum: 1.0 mm
- Mass: 56.0 g
What are the stated diameter and width values?
The supplied data lists a 25.40 mm inside diameter, 31.75 mm outer diameter, and 25.65 mm width for this inner ring.
The LRB162016 Uses High Carbon Steel and Includes an Oil Hole
Product information identifies the material as high carbon steel, with the bearing material list field specifying high carbon chrome steel. The inner ring is described as having an oil hole and being intended to assemble with BR202816.
Which assembled bearing is identified for this inner ring?
The product data lists BR 202816 as the assembled bearing associated with the LRB162016 inner ring.
