IKO LRB202420
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR243320
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRB202420
Shaft Diameter
31.75
mm
Inside Diameter
31.75
mm
Outer Diameter
38.10
mm
Width
32.00
mm
da min
37.0
mm
da max
37.1
mm
ras max
1.5
mm
Assembled bearings
BR 243320
Assembled bearings
-
Assembled bearings
-
Mass
86.0
g
IKO LRB202420 Inner Ring for Inch-Size Assembly
What is the IKO LRB202420?
The IKO LRB202420 is an inner ring within the IKO Inner Rings product series. It is listed for inch usage, general usage, and assembly with BR243320 bearings. The product category path is Brand > IKO > Inner Rings.

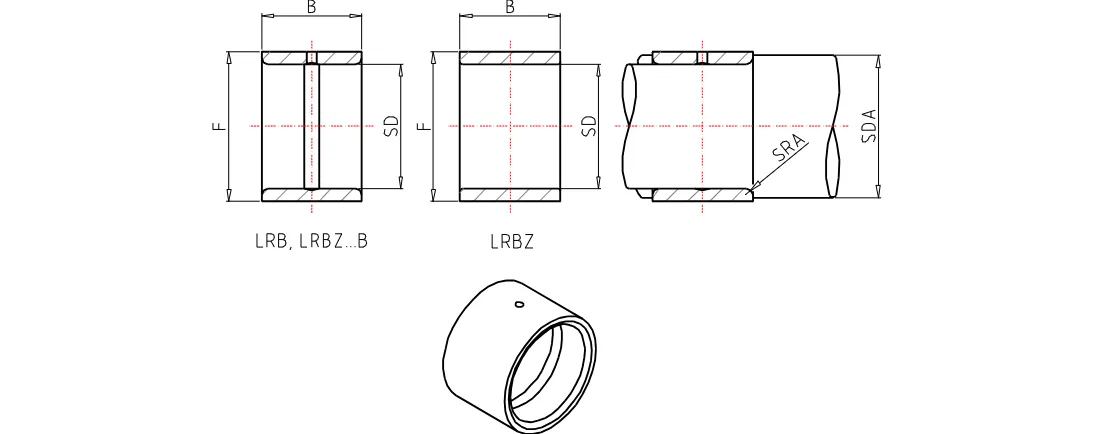

LRB202420 Dimensions and Product Specifications
What dimensions and reference values are provided for this inner ring?
- Shaft diameter: 31.75 mm
- Inside diameter: 31.75 mm
- Outer diameter: 38.10 mm
- Width: 32.00 mm
- da min: 37.0 mm
- da max: 37.1 mm
- ras max: 1.5 mm
- Mass: 86.0 g
Material, Configuration, and Assembly Reference
What material and configuration details are supplied?
The supplied data identifies the bearing type as Inner Rings and lists the material as High Carbon Chrome Steel; the detailed title also describes it as high carbon steel. The ring includes an oil hole and is referenced for assembly with BR 243320.
