IKO LRB222616
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR263516

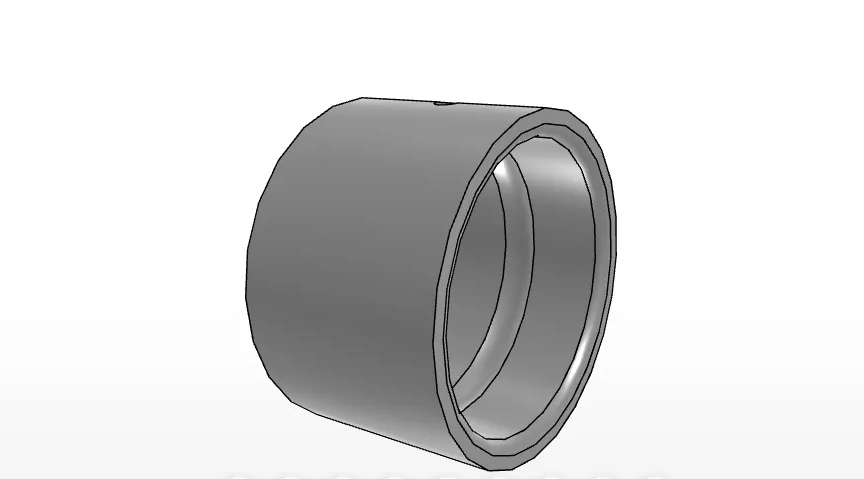

IKO LRB222616 Inner Ring for Inch-Size Bearing Assembly
What is the LRB222616?
The LRB222616 is an IKO inner ring from the Inner Rings series. It is designed for general usage, includes an oil hole, and is listed for assembly with BR263516. The supplied material description identifies the ring as high carbon steel, with the list data also specifying high carbon chrome steel.
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner Rings
- Order number: LRB222616
- Design feature: With oil hole
- Assembled bearing reference: BR263516

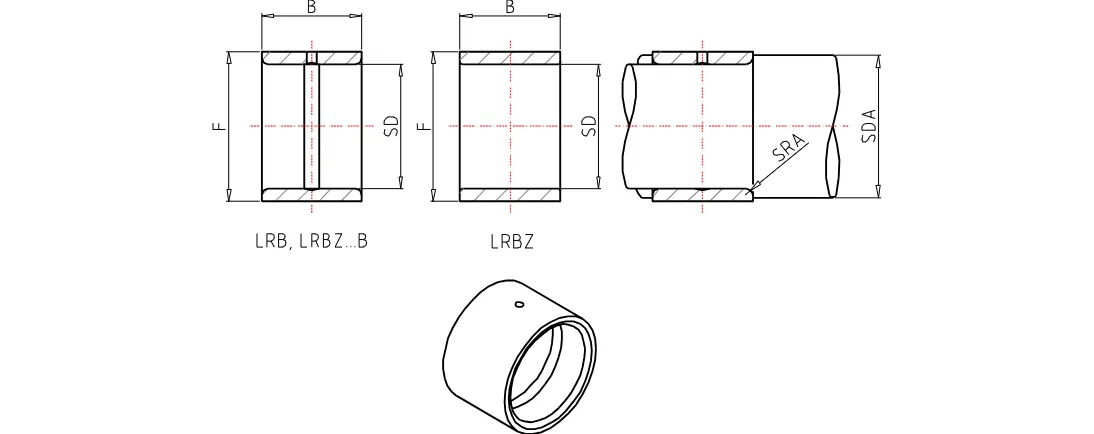

LRB222616 Dimensions and Product Specifications
What dimensions are provided for this inner ring?
The LRB222616 has a shaft diameter and inside diameter of 34.93 mm, an outer diameter of 41.28 mm, and a width of 25.65 mm. The stated mass is 77.0 g.
- Shaft diameter: 34.93 mm
- Inside diameter: 34.93 mm
- Outer diameter: 41.28 mm
- Width: 25.65 mm
- da min: 40.2 mm
- da max: 40.2 mm
- ras max: 1.5 mm
LRB222616 Material and Assembly Information
Which assembly and material details should be reviewed before selection?
The product data lists this inner ring for assembly with BR263516 and identifies the category path as Brand > IKO > Inner Rings. The detail description states high carbon steel, while the structured list title records high carbon chrome steel; use the product documentation or supplier confirmation when a specific material designation is required.
- Category: Brand > IKO > Inner Rings
- Usage: General usage
- Material in detail data: High carbon steel
- Material in list data: High carbon chrome steel
- Assembly reference: BR263516
