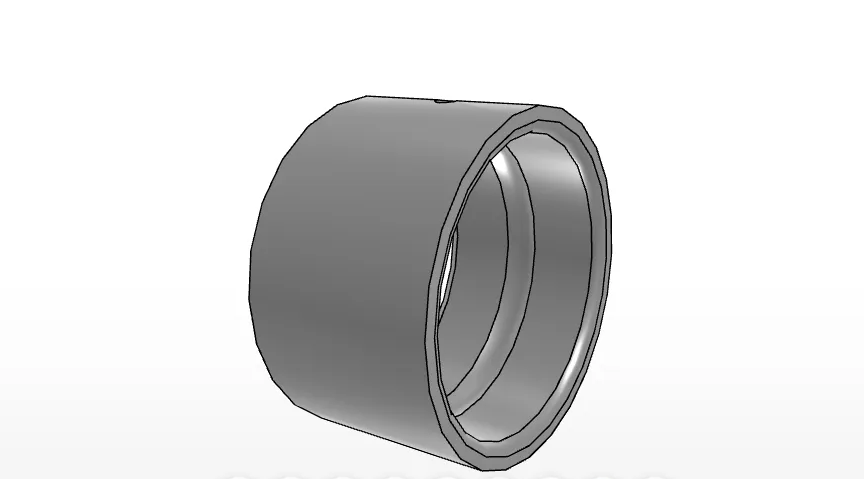

IKO LRB242816
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR283716
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRB242816
Shaft Diameter
38.10
mm
Inside Diameter
38.10
mm
Outer Diameter
44.45
mm
Width
25.65
mm
da min
43.3
mm
da max
43.4
mm
ras max
1.5
mm
Assembled bearings
BR 283716
Assembled bearings
-
Assembled bearings
-
Mass
80.0
g
IKO LRB242816 Inner Ring for Bearing Assembly
What is the LRB242816?
The LRB242816 is an IKO inner ring within the Inner Rings product series. It is an inch-type inner ring designed for general usage and includes an oil hole. The product title identifies it for assembly with BR283716.
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner Ring
- Category path: Brand > IKO > Inner Rings
LRB242816 Dimensions and Specifications
What dimensions are listed for this inner ring?
The supplied product data lists the following dimensions and related specification values for the LRB242816:
- Shaft diameter: 38.10 mm
- Inside diameter: 38.10 mm
- Outside diameter: 44.45 mm
- Width: 25.65 mm
- da min: 43.3 mm
- da max: 43.4 mm
- ras max: 1.5 mm
- Mass: 80.0 g
High Carbon Steel Construction and Assembly Information
What material and assembly details are provided?
The product introduction describes the LRB242816 as high carbon steel, while the listed bearing material identifies the material as High Carbon Chrome Steel. It is specified with an oil hole and is identified for assembly with BR283716. Confirm compatibility with the mating bearing and shaft before selection.
- Verify the 38.10 mm inside diameter against the shaft requirement.
- Check the 44.45 mm outside diameter and 25.65 mm width against the assembly space.
- Use the listed BR283716 assembly reference when matching components.
