IKO LRB243020
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR303920

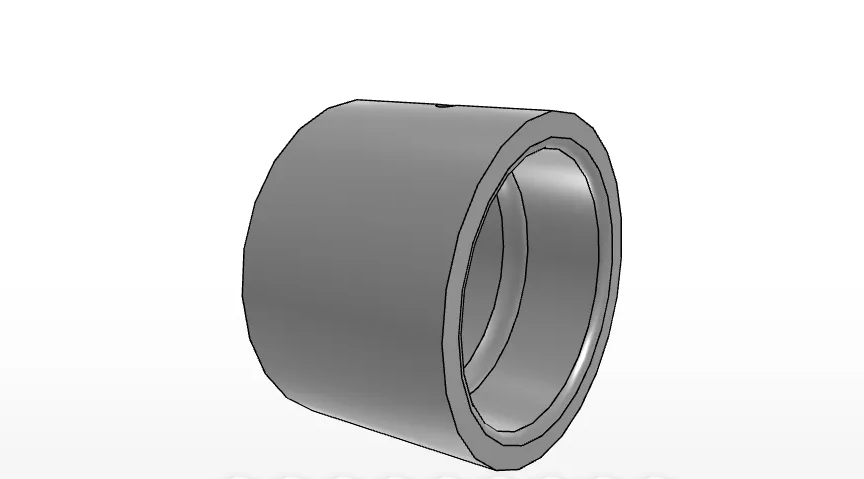

IKO LRB243020 Inner Ring for Bearing Assembly
The IKO LRB243020 is an inner ring in the IKO Inner Rings series. It is listed for inch, general usage and is designed to assemble with BR303920. The product record identifies the material as high carbon steel, with the bearing-material field specified as high carbon chrome steel.
What type of component is the LRB243020?
The LRB243020 is categorized as an Inner Ring under Brand > IKO > Inner Rings. It includes an oil hole and is associated with the BR303920 assembled bearing.

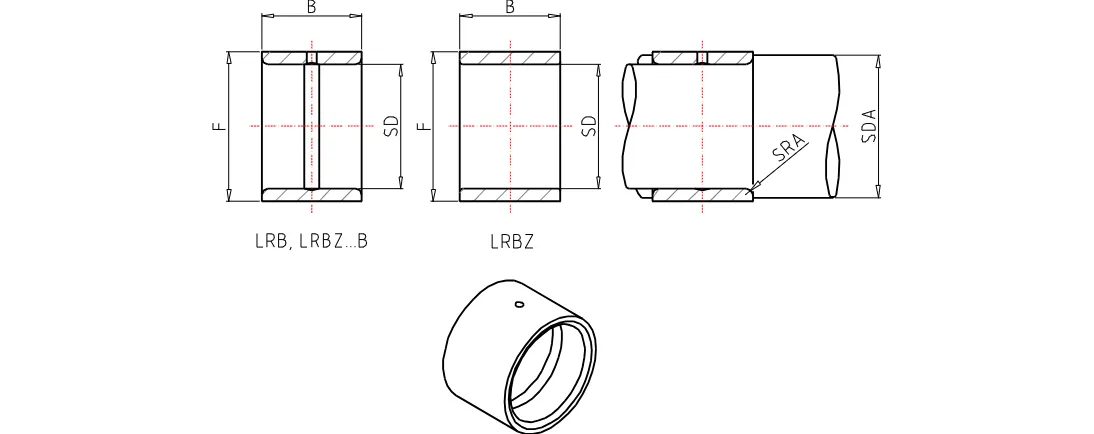

LRB243020 Dimensions and Product Specifications
- Shaft diameter: 38.10 mm
- Inside diameter: 38.10 mm
- Outer diameter: 47.63 mm
- Width: 32.00 mm
- da min: 43.3 mm
- da max: 45.0 mm
- ras max: 1.5 mm
- Mass: 155.0 g
What measurements should be reviewed before selection?
Review the 38.10 mm inside diameter, 47.63 mm outer diameter, 32.00 mm width, and the listed shoulder and fillet dimensions: da min 43.3 mm, da max 45.0 mm, and ras max 1.5 mm. These values support comparison with the mating arrangement and BR303920 assembly.
Material and Assembly Details for the IKO Inner Ring
The supplied product information describes the LRB243020 as a high carbon steel inner ring with an oil hole and general-usage designation. Its assembly reference is BR 303920, and its listed mass is 155.0 g.
Which bearing is identified for use with this inner ring?
The product data lists BR303920 as the assembled bearing for the LRB243020. Compatibility should be checked against the required bearing configuration and the dimensions provided in the product data.
