IKO LRB263216
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR324116

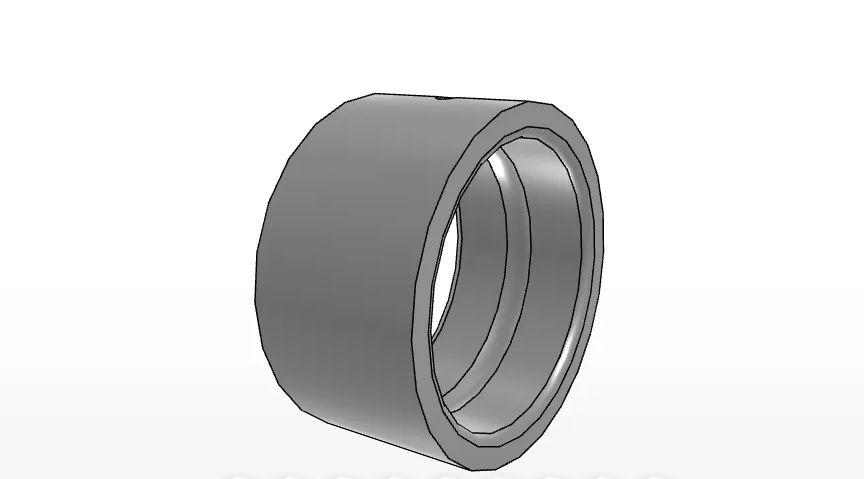

IKO LRB263216 Inner Ring Overview
The IKO LRB263216 is an inner ring in the Inner Rings product series. It is listed for inch, general usage and is designed to assemble with BR324116. The product data identifies the material as high carbon chrome steel, while the detail title refers to high carbon steel.
What bearing type and category does the LRB263216 belong to?
The LRB263216 is classified as an Inner Ring, within the IKO Inner Rings category path: Brand > IKO > Inner Rings.

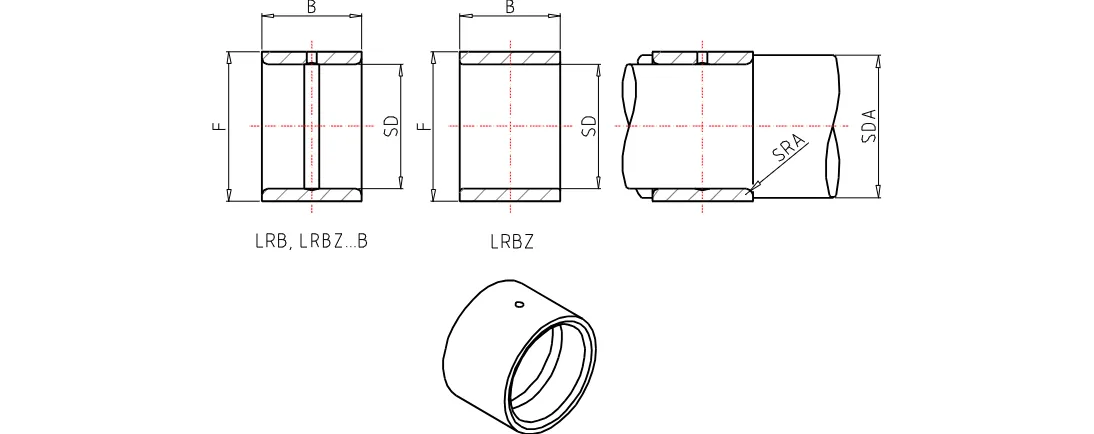

LRB263216 Dimensions and Specifications
- Shaft diameter: 41.28 mm
- Inside diameter: 41.28 mm
- Outer diameter: 50.80 mm
- Width: 25.65 mm
- da min: 48.0 mm
- da max: 49.0 mm
- ras max: 1.5 mm
- Mass: 135.0 g
What are the stated size details for the LRB263216?
The supplied data lists a 41.28 mm inside diameter, 50.80 mm outer diameter, and 25.65 mm width. Additional reference values include da min 48.0 mm, da max 49.0 mm, and ras max 1.5 mm.
LRB263216 Assembly and Feature Information
The detail information identifies the inner ring as having an oil hole and states that it is to assemble with BR324116. The assembled bearing reference in the specification data is listed as BR 324116.
Which bearing is the LRB263216 intended to assemble with?
According to the supplied product data, the LRB263216 is intended to assemble with BR324116, also listed in the data as BR 324116.
