IKO LRB263220
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR324120
LRB263220 IKO Inner Ring Specifications
What are the stated dimensions of the LRB263220?

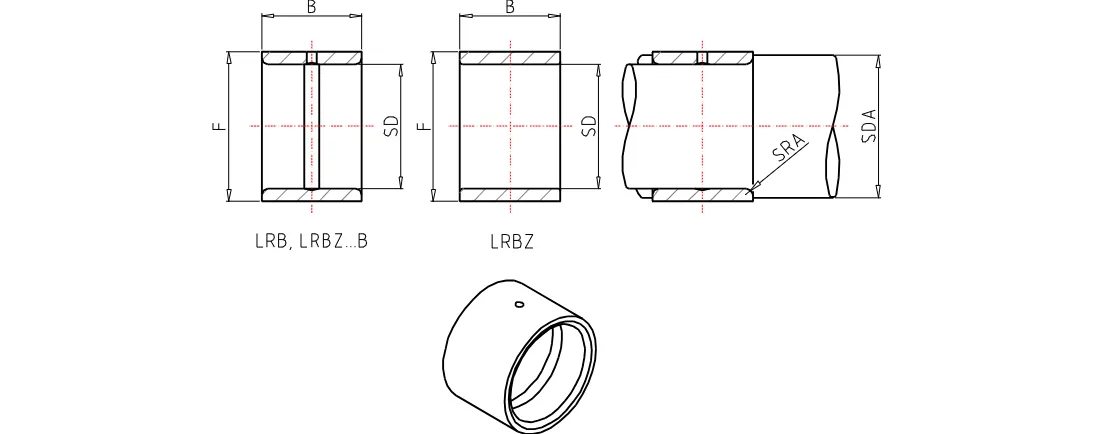

The IKO LRB263220 is listed in the Inner Rings product series. Its stated shaft diameter and inside diameter are 41.28 mm, outer diameter is 50.80 mm, and width is 32.00 mm. Additional data lists da minimum as 48.0 mm, da maximum as 49.0 mm, ras maximum as 1.5 mm, and mass as 170.0 g.
- Order number: LRB263220
- Brand: IKO
- Bearing type: Inner Rings
- Material listing: High carbon chrome steel
LRB263220 Product Configuration
What design details are provided for this inner ring?
The product title identifies the LRB263220 as an inch, general-usage inner ring with an oil hole. It is described for assembly with BR324120, and the specification panel lists assembled bearings as BR 324120.
- Confirm the required shaft diameter of 41.28 mm.
- Verify the 50.80 mm outer diameter and 32.00 mm width against the mating component.
- Review the stated BR324120 assembly reference before selection.
LRB263220 Category and Material Information
How is the LRB263220 classified in the supplied data?
The supplied category path places this item under Brand > IKO > Inner Rings. The list data identifies the bearing type as Inner Rings and the bearing material as high carbon chrome steel, while the descriptive title refers to high carbon steel with an oil hole.
No additional certification, stock status, performance guarantee, load rating, or application claim is provided in the supplied product data.
