IKO LRB283628
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR364828

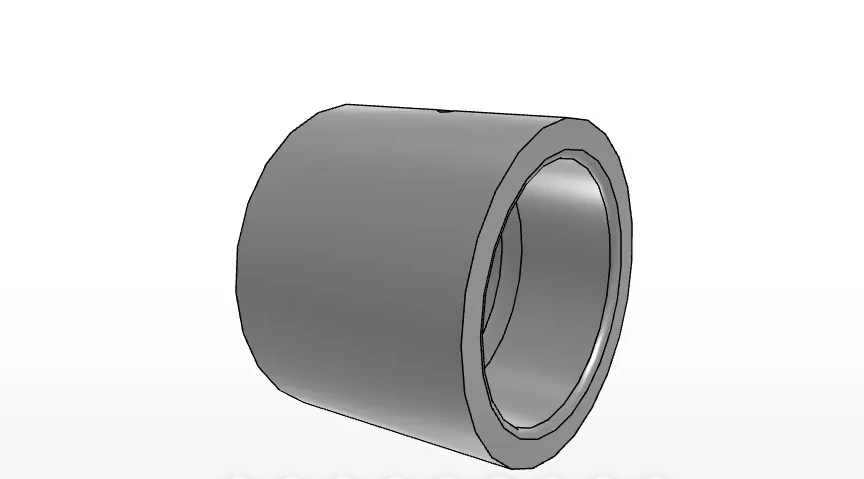

IKO LRB283628 Inner Ring Overview
The IKO LRB283628 is an inner ring in the Inner Rings product series, categorized under Brand > IKO > Inner Rings. It is listed as an inch-type inner ring for general usage, with an oil hole and design reference for assembly with BR364828.
What bearing type and material are listed for the LRB283628?
The LRB283628 is listed as an Inner Ring. Its bearing material is identified as High Carbon Chrome Steel; the product description also refers to high carbon steel construction.

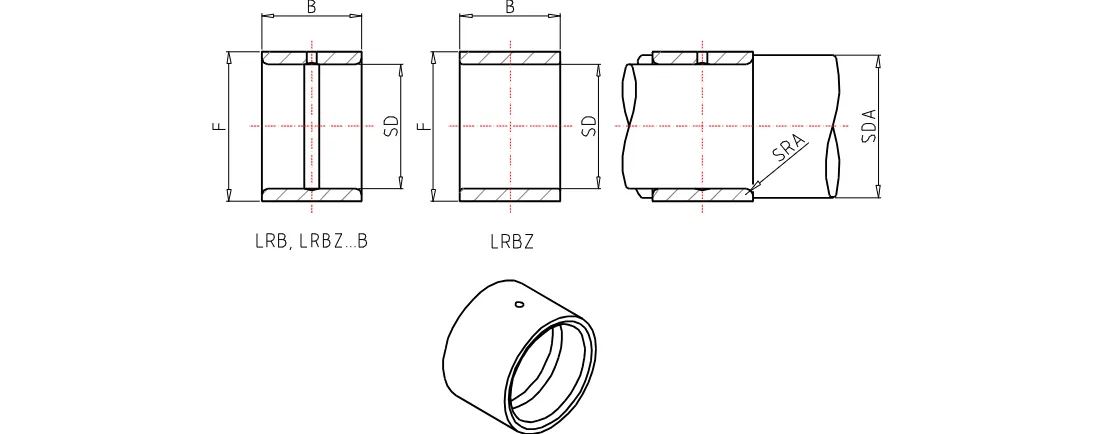

LRB283628 Dimensions and Product Details
- Shaft diameter: 44.45 mm
- Inside diameter: 44.45 mm
- Outer diameter: 57.15 mm
- Width: 44.70 mm
- da min: 52.5 mm
- da max: 55.0 mm
- ras max: 1.5 mm
- Mass: 345.0 g
What are the stated dimensions for the IKO LRB283628?
The supplied data lists a 44.45 mm shaft and inside diameter, a 57.15 mm outer diameter, and a 44.70 mm width. Additional values include da minimum 52.5 mm, da maximum 55.0 mm, ras maximum 1.5 mm, and a mass of 345.0 g.
LRB283628 Assembly Reference
The LRB283628 is identified for assembly with BR 364828. The product record also notes an oil hole, which is included as part of the described inner-ring configuration.
Which assembled bearing is referenced for this inner ring?
The supplied product data lists BR 364828 as the assembled bearing reference for the LRB283628. Compatibility should be checked against the relevant bearing assembly requirements before selection.
