IKO LRB324028
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR405228
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRB324028
Shaft Diameter
50.80
mm
Inside Diameter
50.80
mm
Outer Diameter
63.50
mm
Width
44.70
mm
da min
58.0
mm
da max
61.0
mm
ras max
2.0
mm
Assembled bearings
BR 405228
Assembled bearings
-
Assembled bearings
-
Mass
390.0
g

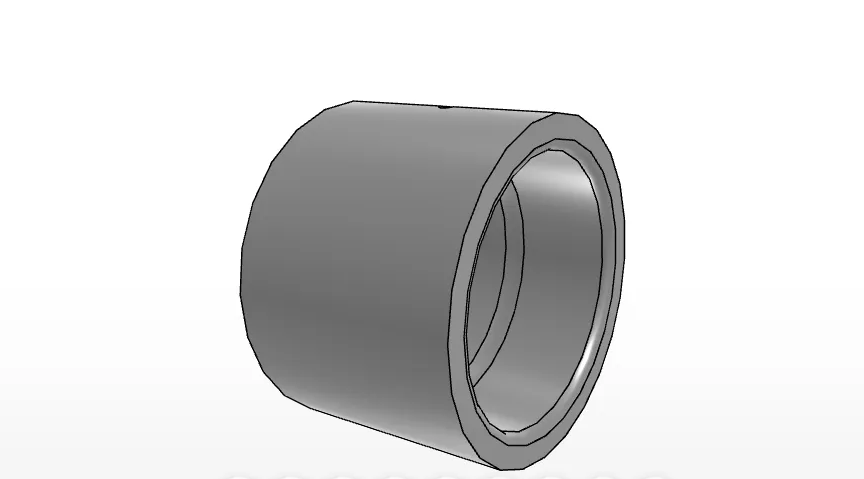

The IKO LRB324028 Is an Inch Inner Ring for Bearing Assembly
What product type and brand are identified for the LRB324028?
The LRB324028 is an IKO inner ring in the Inner Rings product series. It is listed as an inch inner ring with an oil hole and is intended to assemble with BR405228.

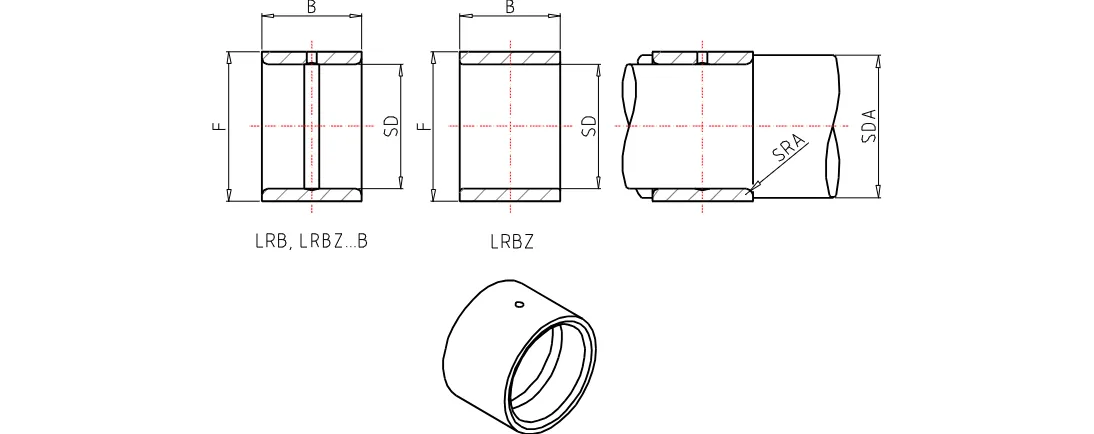

The LRB324028 Has Documented Bore, Outer Diameter, and Width Dimensions
What dimensions are supplied for the LRB324028?
- Shaft diameter: 50.80 mm
- Inside diameter: 50.80 mm
- Outer diameter: 63.50 mm
- Width: 44.70 mm
- da min: 58.0 mm
- da max: 61.0 mm
- ras max: 2.0 mm
The LRB324028 Material and Assembly Information Are Stated in the Product Record
What additional product details are available for selection?
The listing identifies the bearing material as high carbon chrome steel, while the product description also refers to high carbon steel. The inner ring is noted for general usage, includes an oil hole, is associated with assembled bearing BR 405228, and has a listed mass of 390.0 g.
- Confirm the required shaft size matches the 50.80 mm inside diameter.
- Verify that the 63.50 mm outer diameter and 44.70 mm width suit the intended arrangement.
- Check compatibility with the specified assembled bearing, BR405228.
