IKO LRB364424
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR445624

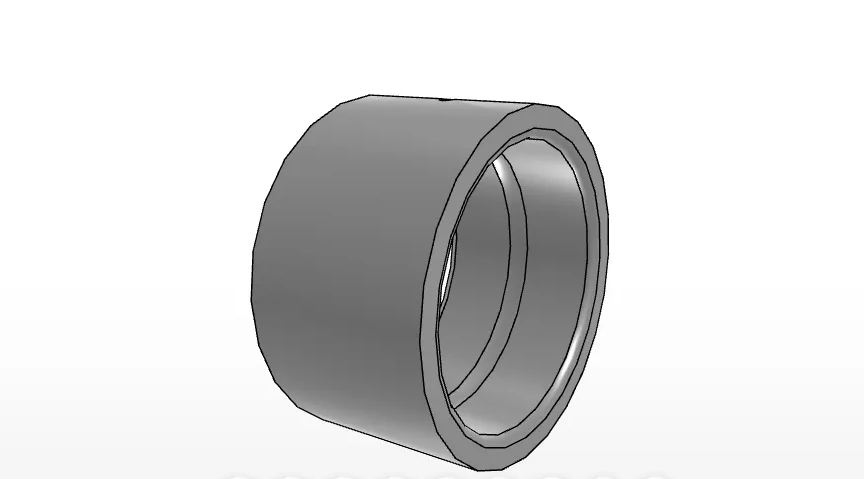

IKO LRB364424 Inner Ring for Inch-Size Assembly
The LRB364424 is an IKO inner ring in the Inner Rings series. It is described as an inch, general-usage inner ring with an oil hole and is intended for assembly with BR445624.
What bearing type and brand identify the LRB364424?
The product is an IKO Inner Ring, ordered under model number LRB364424. Its listed category path is Brand > IKO > Inner Rings.

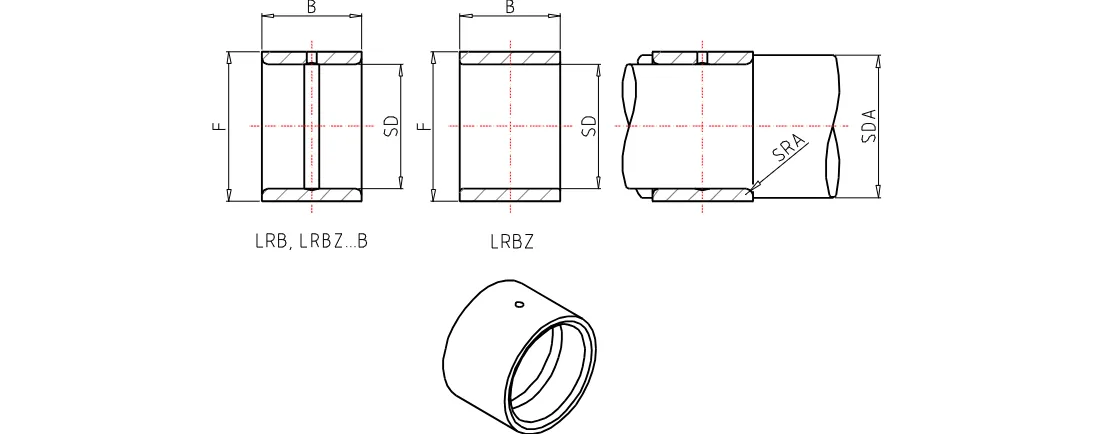

LRB364424 Dimensions and Mass Specifications
- Shaft diameter: 57.15 mm
- Inside diameter: 57.15 mm
- Outside diameter: 69.85 mm
- Width: 38.35 mm
- da min: 65.0 mm
- da max: 67.0 mm
- ras max: 2.0 mm
- Mass: 375.0 g
What are the principal bore, outside diameter, and width values?
The LRB364424 has a 57.15 mm inside diameter, a 69.85 mm outside diameter, and a 38.35 mm width. The listed shaft diameter matches the inside diameter at 57.15 mm.
Material and Assembly Details for the LRB364424
The supplied data lists the bearing material as high carbon chrome steel, while the title description identifies high carbon steel and an oil hole. The associated assembled bearing reference is BR 445624.
Which assembly and material details are provided for this inner ring?
The LRB364424 is specified to assemble with BR445624. The structured bearing-material field identifies high carbon chrome steel, and the product description notes an oil-hole design for general usage.
