IKO LRB364428
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR445628

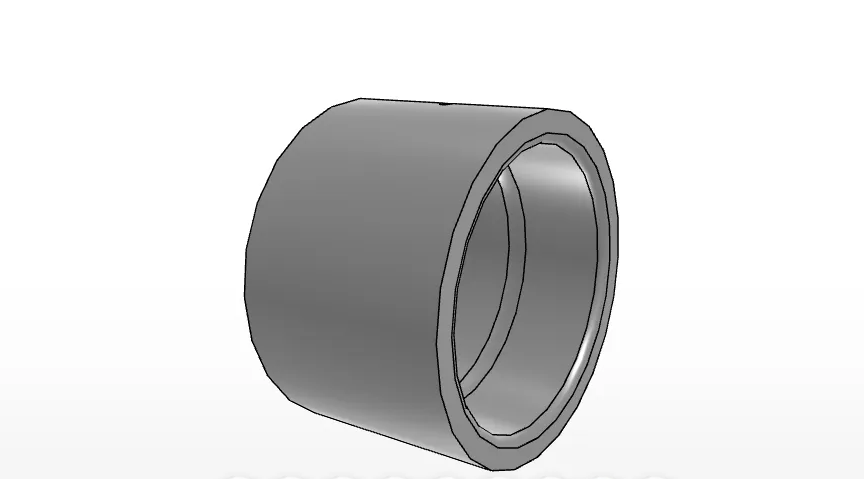

IKO LRB364428 Inner Ring for Inch-Size Assembly
The IKO LRB364428 is an inner ring in the IKO Inner Rings series. It is listed for inch, general usage and is designed to assemble with bearing BR 445628. The product identification includes an oil hole and uses high carbon steel material information as supplied in the product record.
What bearing type and brand does the LRB364428 belong to?
The model is an Inner Ring from IKO, categorized under Brand > IKO > Inner Rings. Its supplied description identifies it as an inch inner ring for general usage with an oil hole.

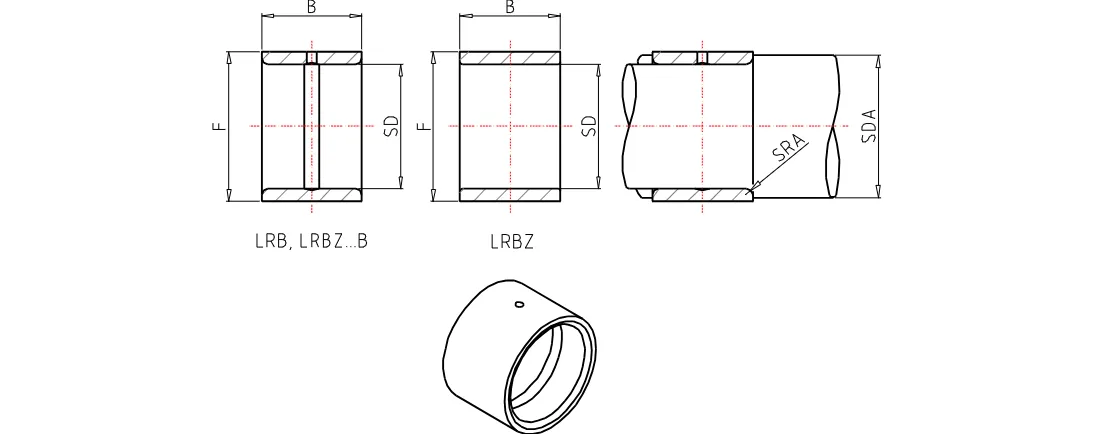

LRB364428 Dimensions and Product Specifications
- Shaft diameter: 57.15 mm
- Inside diameter: 57.15 mm
- Outside diameter: 69.85 mm
- Width: 44.70 mm
- da min: 65.0 mm
- da max: 67.0 mm
- ras max: 2.0 mm
- Mass: 440.0 g
What are the key measured values for the LRB364428?
The supplied dimensional data lists a bore and shaft diameter of 57.15 mm, an outside diameter of 69.85 mm, and a width of 44.70 mm. Additional values include da min 65.0 mm, da max 67.0 mm, ras max 2.0 mm, and a mass of 440.0 g.
LRB364428 Material and Compatibility Details
The product record identifies the bearing material as high carbon chrome steel, while the descriptive title also refers to high carbon steel. The LRB364428 is noted for assembly with BR445628, allowing selection based on the supplied model relationship and specifications.
Which bearing is listed for assembly with the LRB364428?
The supplied product data lists BR 445628 as the assembled bearing. Compatibility should be checked against the mating bearing model and the stated dimensions before selection.
