IKO LRB445228
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR526828
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRB445228
Shaft Diameter
69.85
mm
Inside Diameter
69.85
mm
Outer Diameter
82.55
mm
Width
44.70
mm
da min
77.0
mm
da max
79.0
mm
ras max
2.0
mm
Assembled bearings
BR 526828
Assembled bearings
-
Assembled bearings
-
Mass
530.0
g

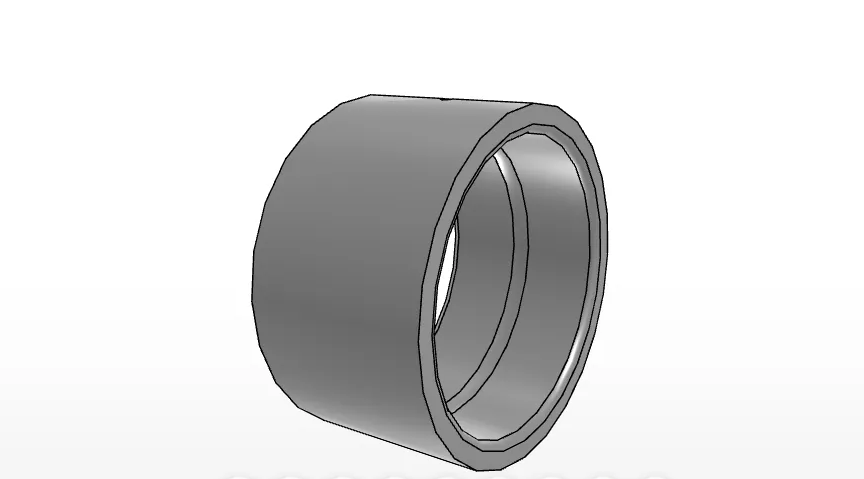

The IKO LRB445228 Is an Inch Inner Ring
What type of bearing component is the LRB445228?
The IKO LRB445228 is listed within the Inner Rings product series and category path Brand > IKO > Inner Rings. The supplied data identifies it as an inch inner ring for general usage, with an oil hole and a configuration intended to assemble with BR526828.
- Brand: IKO
- Model: LRB445228
- Series: Inner Rings
- Bearing type: Inner Rings
- Assembly reference: BR 526828

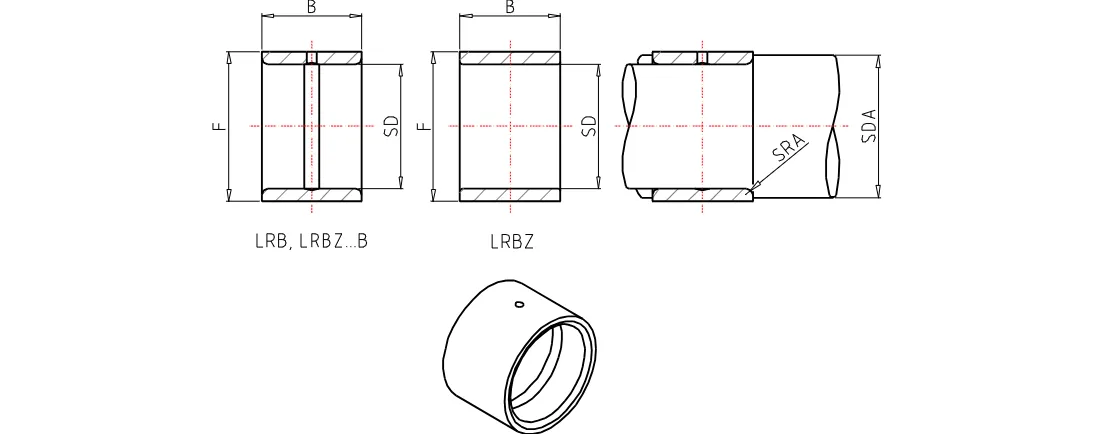

The LRB445228 Has Stated Inch-Based Dimensions
What dimensions are provided for this inner ring?
The product data specifies the following dimensions for the LRB445228. These values can be used to check dimensional compatibility with the intended assembly:
- Shaft diameter: 69.85 mm
- Inside diameter: 69.85 mm
- Outer diameter: 82.55 mm
- Width: 44.70 mm
- da min: 77.0 mm
- da max: 79.0 mm
- ras max: 2.0 mm
The LRB445228 Uses a Steel Construction
What material and other product details are recorded?
The listing describes the component material as high carbon steel in the detailed title and as high carbon chrome steel in the bearing material field. The recorded mass is 530.0 g. The detailed title also notes that the inner ring includes an oil hole and is intended for assembly with BR526828.
- Material description: High carbon steel; high carbon chrome steel
- Design feature: With oil hole
- Usage description: General usage
- Mass: 530.0 g
- Order number: LRB445228
