IKO LRB485632
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR567232
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRB485632
Shaft Diameter
76.20
mm
Inside Diameter
76.20
mm
Outer Diameter
88.90
mm
Width
51.05
mm
da min
83.5
mm
da max
86.0
mm
ras max
2.0
mm
Assembled bearings
BR 567232
Assembled bearings
-
Assembled bearings
-
Mass
640.0
g

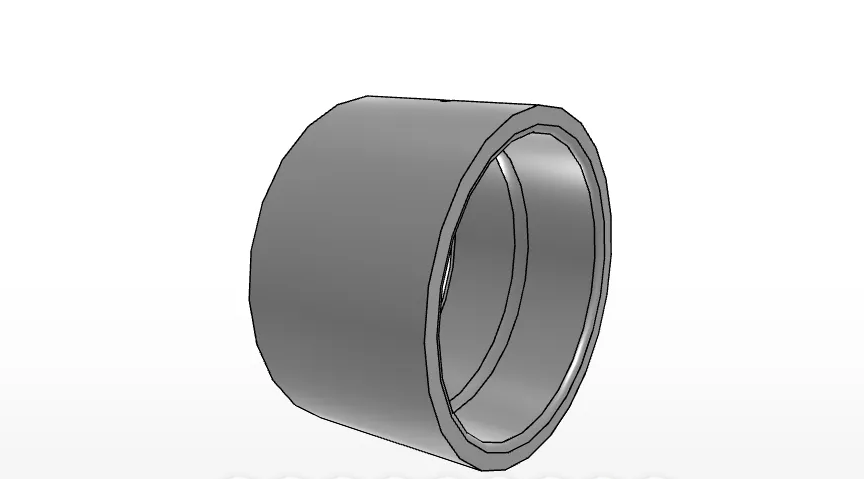

IKO LRB485632 Inner Ring for Bearing Assembly
What is the LRB485632?
The IKO LRB485632 is an inch inner ring in the IKO Inner Rings series. It is listed for assembly with BR567232 and includes an oil hole. The product title describes it for general usage.
- Brand: IKO
- Series: Inner Rings
- Category: Brand > IKO > Inner Rings
- Order Number: LRB485632
- Assembly: BR567232

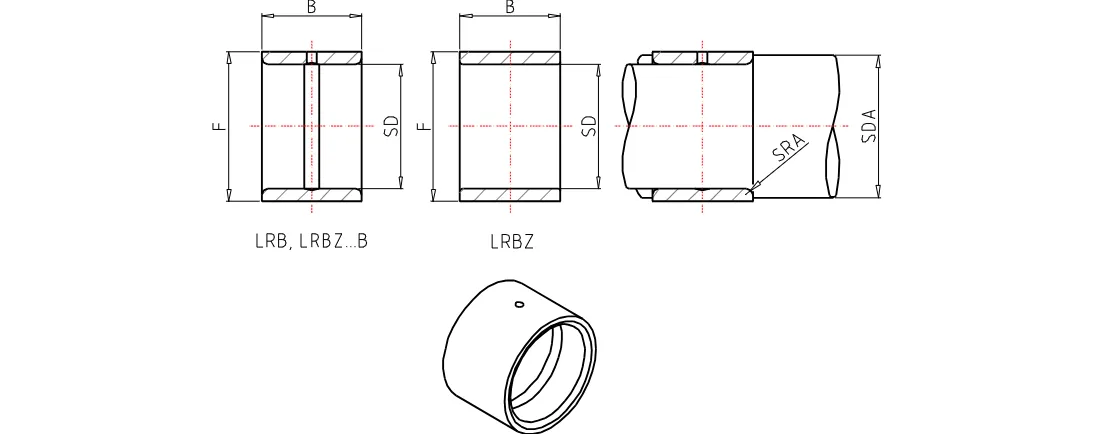

LRB485632 Dimensions and Product Specifications
What dimensions and material are provided for this inner ring?
The supplied data identifies the LRB485632 with a shaft diameter and inside diameter of 76.20 mm, an outer diameter of 88.90 mm, and a width of 51.05 mm. The listed bearing material is high carbon chrome steel; the product title also refers to high carbon steel.
- Shaft diameter: 76.20 mm
- Inside diameter: 76.20 mm
- Outer diameter: 88.90 mm
- Width: 51.05 mm
- da min: 83.5 mm
- da max: 86.0 mm
- ras max: 2.0 mm
- Mass: 640.0 g
LRB485632 Inner Ring Identification Details
How can the supplied product information be reviewed at a glance?
The LRB485632 is categorized as an inner ring and is associated with the BR567232 assembled bearing. Use the listed order number and measured dimensions when comparing this item against your requirement.
- Model / Order Number: LRB485632
- Bearing Type: Inner Rings
- Material Listing: High Carbon Chrome Steel
- Oil Hole: Included
- Size Basis: Inch
- Mass: 640.0 g
