IKO LRB566432
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR648032
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRB566432
Shaft Diameter
88.90
mm
Inside Diameter
88.90
mm
Outer Diameter
101.60
mm
Width
51.05
mm
da min
97.0
mm
da max
99.0
mm
ras max
2.5
mm
Assembled bearings
BR 648032
Assembled bearings
-
Assembled bearings
-
Mass
750.0
g

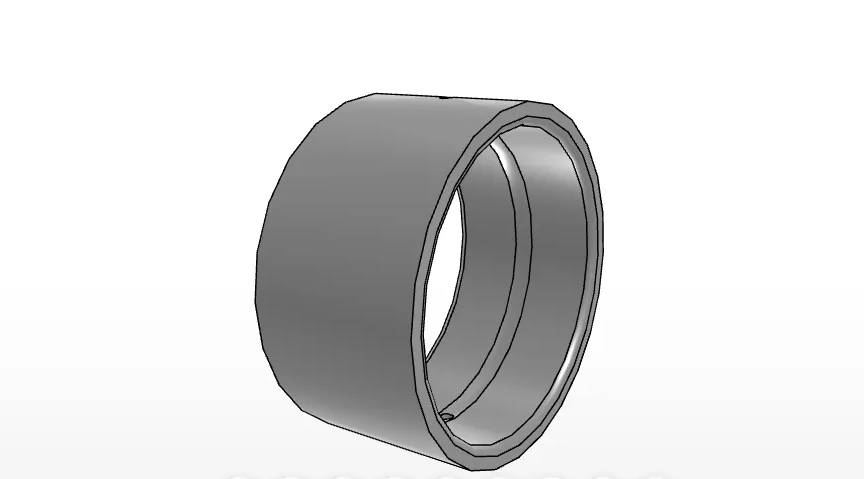

IKO LRB566432 Inner Ring Overview
What is the IKO LRB566432?
The LRB566432 is an IKO inner ring within the Inner Rings product series. It is an inch-type inner ring for general usage, with an oil hole, and is intended to assemble with the BR648032 bearing.

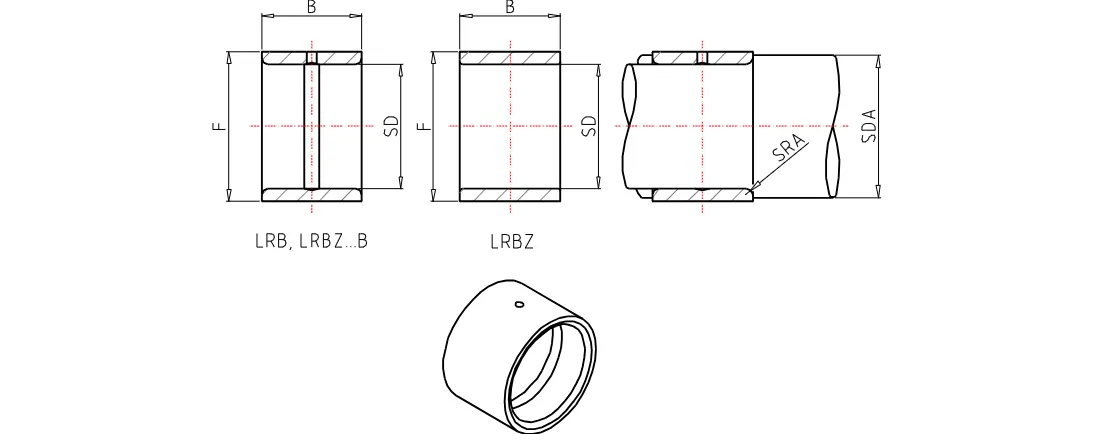

Stated Dimensions and Product Details
What dimensions are provided for the LRB566432?
- Shaft diameter: 88.90 mm
- Inside diameter: 88.90 mm
- Outer diameter: 101.60 mm
- Width: 51.05 mm
- da min: 97.0 mm
- da max: 99.0 mm
- ras max: 2.5 mm
- Mass: 750.0 g
Material and Assembly Information
What material and bearing compatibility are listed?
The supplied data identifies the bearing material as high carbon chrome steel, while the product description references high carbon steel construction. The LRB566432 is listed for assembly with BR648032 and belongs in the Brand > IKO > Inner Rings category path.
