IKO LRB81216
Inner Ring, Inch, General Usage, High Carbon Steel, With Oil Hole , To Assemble with BR122016

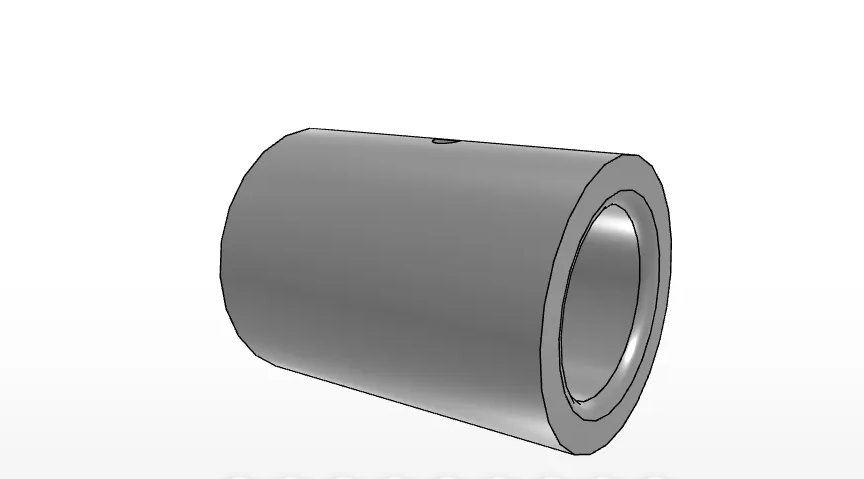

IKO LRB81216 Inner Ring Overview
The IKO LRB81216 is an inner ring within the IKO Inner Rings series. It is listed for general usage and is designed to assemble with BR122016.
What bearing type and material are specified?
The product is identified as an Inner Ring and the listed bearing material is High Carbon Chrome Steel. The detail description also refers to high carbon steel construction with an oil hole.

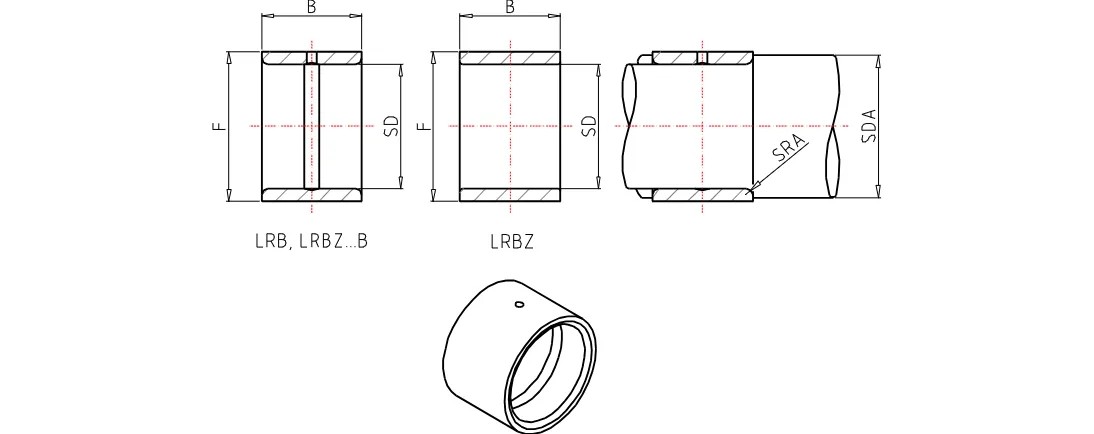

LRB81216 Dimensions and Product Details
- Shaft diameter: 12.70 mm
- Inside diameter: 12.70 mm
- Outer diameter: 19.05 mm
- Width: 25.65 mm
- da min: 17.5 mm
- da max: 18.0 mm
- ras max: 1.0 mm
- Mass: 31.0 g
What are the configuration details for this inner ring?
This inch inner ring includes an oil hole and is listed for assembly with BR 122016. The supplied data identifies the order number as LRB81216.
Series and Category Information
The LRB81216 is categorized under Brand > IKO > Inner Rings and belongs to the IKO Inner Rings product series.
How should this product information be used?
Use the listed dimensions, series, material description, and assembled bearing reference to compare or identify the inner ring. Confirm suitability against the mating bearing and required shaft or housing arrangement before selection.
