IKO LRT10011030
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TAF11013030
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT10011030
Shaft Dimaeter
100
mm
Inside Diamater
100
mm
Outer Diameter
110
mm
Width
30
mm
rs min.
1.00
mm
da min
105.0
mm
da max
108.0
mm
Assembled bearings
TAF 11013030
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
380.0
g
IKO LRT10011030 Inner Ring Specifications
What are the basic dimensions of the IKO LRT10011030?
The IKO LRT10011030 is a metric inner ring with a 100 mm inside diameter, 110 mm outer diameter, and 30 mm width. The listed mass is 380.0 g, with a minimum chamfer dimension of 1.00 mm.
- Model: LRT10011030
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner Rings
- Material: High Carbon Chrome Steel
Designed for TAF11013030 Assembly
Which bearing is the LRT10011030 intended to assemble with?
The product data identifies the LRT10011030 as an inner ring to assemble with TAF11013030. It is described as a metric inner ring for general usage.
- Assembled bearing: TAF 11013030
- Usage: General Usage
- Category: Brand > IKO > Inner Rings

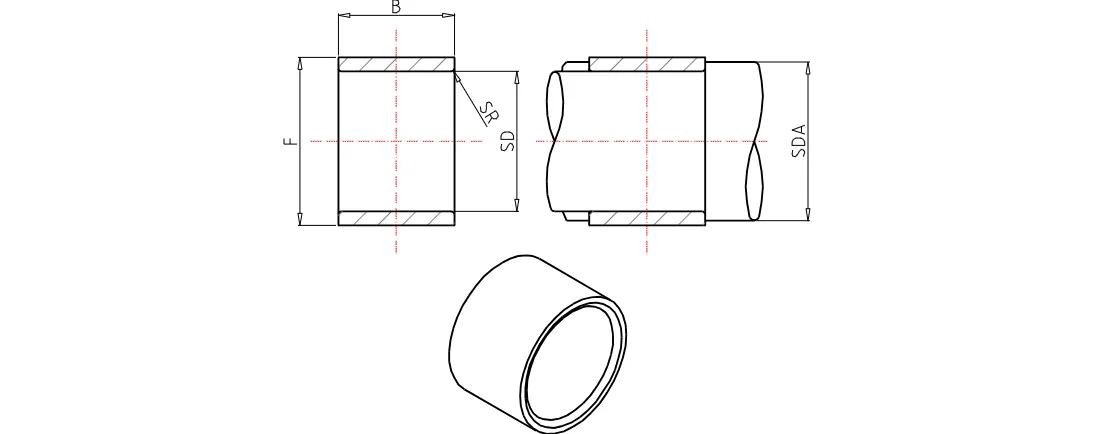

Dimensional Reference Data
What reference values should be reviewed for installation planning?
The supplied data lists shaft and inside diameter as 100 mm, outer diameter as 110 mm, and width as 30 mm. It also provides reference values for related mounting dimensions: da minimum 105.0 mm and da maximum 108.0 mm.
- Confirm the shaft or bore requirement against the 100 mm inside diameter.
- Review the 110 mm outer diameter and 30 mm width against the mating component.
- Use the listed rs, da minimum, and da maximum values as reference dimensions.
