IKO LRT10011050
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TR11013550
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT10011050
Shaft Dimaeter
100
mm
Inside Diamater
100
mm
Outer Diameter
110
mm
Width
51
mm
rs min.
1.50
mm
da min
108.0
mm
da max
108.5
mm
Assembled bearings
TR 11013550
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
640.0
g

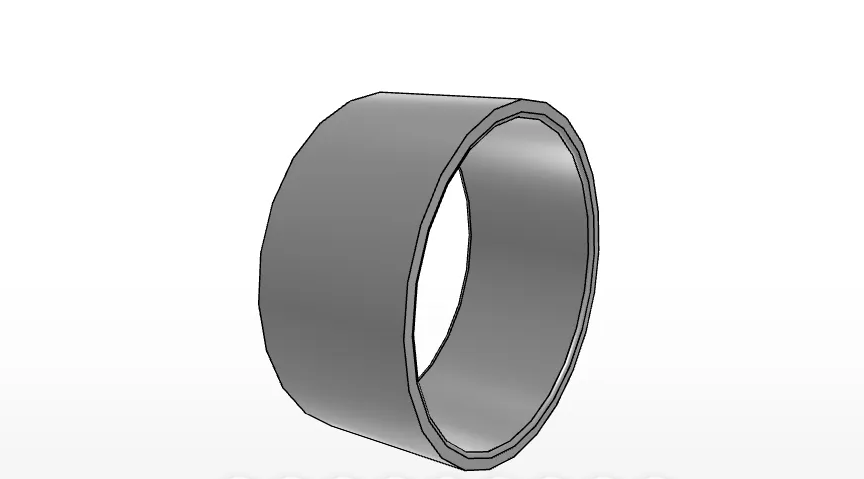

IKO LRT10011050 Inner Ring Overview
What is the LRT10011050?
The LRT10011050 is an IKO Inner Ring from the Inner Rings product series. It is a metric inner ring listed for assembly with TR11013550.
- Brand: IKO
- Series: Inner Rings
- Bearing Type: Inner Rings
- Material: High Carbon Chrome Steel
Metric Dimensions and Product Data
What dimensions are provided for this inner ring?
The supplied product data identifies the following dimensions for the LRT10011050:
- Shaft / Inside Diameter: 100 mm
- Outer Diameter: 110 mm
- Width: 51 mm
- rs min.: 1.50 mm
- da min.: 108.0 mm
- da max.: 108.5 mm
- Mass: 640.0 g
Assembly and Material Information
Which bearing and material details should be reviewed before selection?
The LRT10011050 is listed to assemble with TR11013550. Its stated material is high carbon chrome steel, and the product title also describes it as a metric inner ring for general usage made from high carbon steel.
Confirm compatibility with the specified mating bearing and required shaft, seating, and edge-clearance dimensions before ordering.
