IKO LRT10011540
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA4920

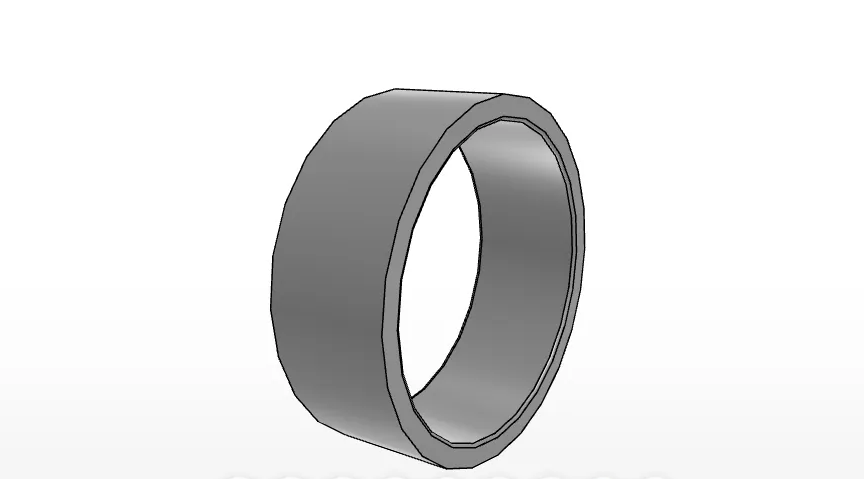

IKO LRT10011540 Inner Ring for Metric Bearing Assembly
The LRT10011540 is an IKO inner ring from the Inner Rings series. It is listed as a metric, general-usage inner ring made from high carbon chrome steel and is intended to assemble with RNA4920.
What bearing type and brand does the LRT10011540 represent?
This component is an IKO Inner Ring, identified by order number LRT10011540. Its product category path is Brand > IKO > Inner Rings.
LRT10011540 Dimensions and Specification Values
- Shaft diameter: 100 mm
- Inside diameter: 100 mm
- Outer diameter: 115 mm
- Width: 40 mm
- rs minimum: 1.10 mm
- da minimum: 106.5 mm
- da maximum: 113.0 mm
- Mass: 770.0 g
What are the stated size details for selection?
The supplied data lists a 100 mm inside diameter, 115 mm outer diameter, and 40 mm width. Additional values include rs min. 1.10 mm, da min. 106.5 mm, and da max. 113.0 mm.
Material and Assembly Information for LRT10011540
The LRT10011540 inner ring is specified as High Carbon Chrome Steel in the bearing material data, while the title description refers to high carbon steel. The product record identifies RNA4920 as the assembled bearing it is to assemble with.
Which bearing is listed for assembly with this inner ring?
The supplied product information states that the LRT10011540 is to assemble with RNA4920, also written in the data as RNA 4920.
