IKO LRT101413
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA4900 and RNAF142213
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT101413
Shaft Dimaeter
10
mm
Inside Diamater
10
mm
Outer Diameter
14
mm
Width
13
mm
rs min.
0.30
mm
da min
12.0
mm
da max
13.0
mm
Assembled bearings
RNA 4900
Assembled bearings
RNAF 142213
Assembled bearings
-
Assembled bearings
-
Mass
7.5
g

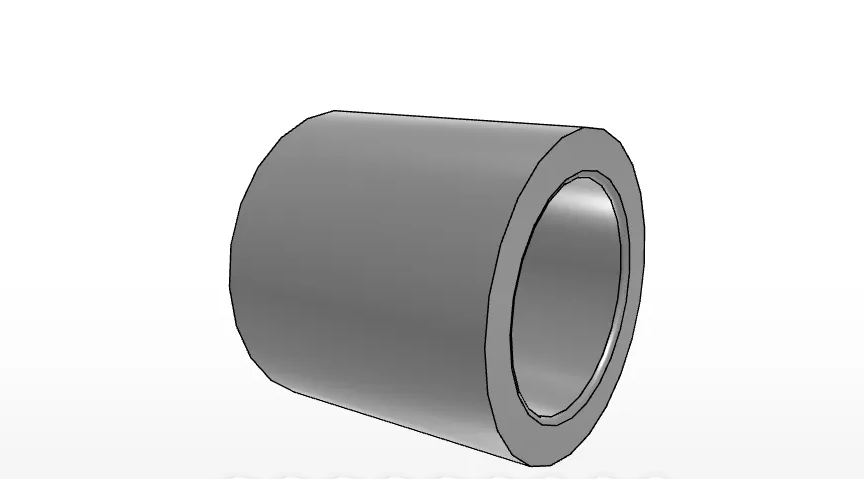

IKO LRT101413 Inner Ring for Metric Bearing Assemblies
What is the IKO LRT101413?
The LRT101413 is an IKO inner ring from the Inner Rings product series. It is designed for metric use and is listed for assembly with RNA 4900 and RNAF 142213 bearings.
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner ring
- Order number: LRT101413
LRT101413 Dimensions and Material Specification
What dimensions and material are provided for this inner ring?
The supplied product data identifies the LRT101413 as a metric inner ring made of high carbon chrome steel. The detailed title also describes the material as high carbon steel.
- Shaft diameter: 10 mm
- Inside diameter: 10 mm
- Outside diameter: 14 mm
- Width: 13 mm
- rs minimum: 0.30 mm
- da minimum: 12.0 mm
- da maximum: 13.0 mm
- Mass: 7.5 g
Compatible IKO Bearing Arrangements
Which assembled bearings are listed for the LRT101413?
The product data lists the LRT101413 inner ring for use with the following assembled bearings. Compatibility should be checked against the selected bearing arrangement before ordering.
- RNA 4900
- RNAF 142213
Category path: Brand > IKO > Inner Rings.
