IKO LRT101416
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TAF142216

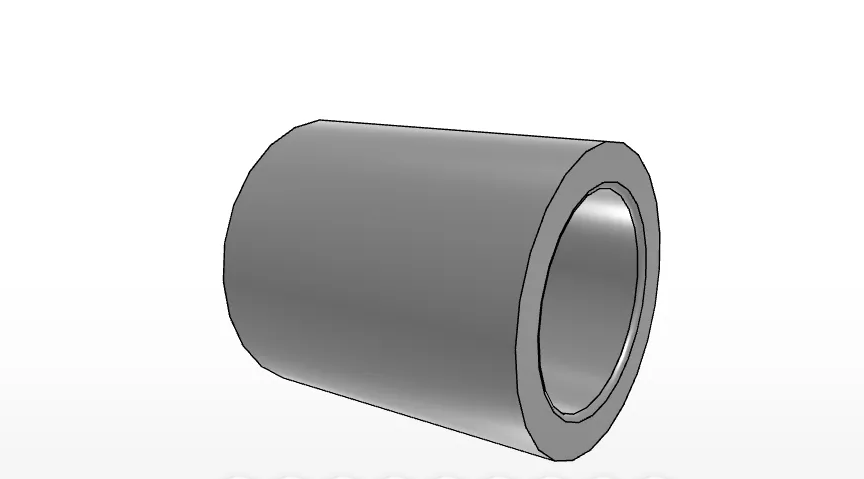

LRT101416 IKO Inner Ring for Metric Assembly
The LRT101416 is an IKO inner ring in the Inner Rings series. It is listed for general usage and is intended to assemble with TAF142216.
What bearing type and brand does the LRT101416 represent?
The model is an IKO Inner Ring, categorized under Brand > IKO > Inner Rings. The supplied data identifies its bearing type as Inner Rings.
LRT101416 Dimensions and Product Specifications
- Shaft diameter: 10 mm
- Inside diameter: 10 mm
- Outer diameter: 14 mm
- Width: 16 mm
- rs minimum: 0.30 mm
- da minimum: 12.0 mm
- da maximum: 13.0 mm
- Mass: 9.0 g
What are the basic size details of the LRT101416?
This metric inner ring has a 10 mm inside diameter, 14 mm outer diameter, and 16 mm width. Additional listed values include a minimum rs of 0.30 mm and a da range of 12.0 mm to 13.0 mm.
LRT101416 Material and Compatibility Information
The supplied product data lists the material as High Carbon Chrome Steel, while the descriptive title also refers to high carbon steel. The inner ring is specified for assembly with TAF 142216.
Which bearing is noted for assembly with the LRT101416?
The product data identifies TAF 142216 as the assembled bearing. Confirm fit and assembly requirements using the selected mating component before installation.
