IKO LRT101420
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TAF142220 and RNAFW142220
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT101420
Shaft Dimaeter
10
mm
Inside Diamater
10
mm
Outer Diameter
14
mm
Width
20
mm
rs min.
0.30
mm
da min
12.0
mm
da max
13.0
mm
Assembled bearings
TAF 142220
Assembled bearings
RNAFW 142220
Assembled bearings
-
Assembled bearings
-
Mass
11.5
g

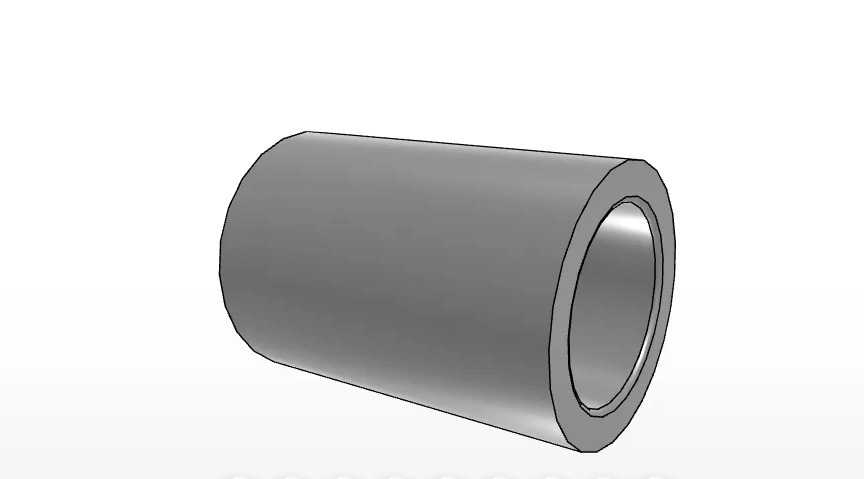

IKO LRT101420 Inner Ring for Metric Bearing Assembly
What is the IKO LRT101420?
The IKO LRT101420 is an Inner Rings series product listed under Brand > IKO > Inner Rings. It is a metric inner ring designed to assemble with TAF142220 and RNAFW142220 bearings.
LRT101420 Dimensions and Measured Specifications
What dimensions and values are provided for this inner ring?
- Shaft diameter: 10 mm
- Inside diameter: 10 mm
- Outer diameter: 14 mm
- Width: 20 mm
- rs minimum: 0.30 mm
- da minimum: 12.0 mm
- da maximum: 13.0 mm
- Mass: 11.5 g
IKO Inner Ring Material and Assembly Compatibility
What material and compatible bearing references are supplied?
The supplied product data identifies the bearing material as High Carbon Chrome Steel, while the descriptive product information refers to high carbon steel. The listed compatible assemblies are TAF 142220 and RNAFW 142220.
