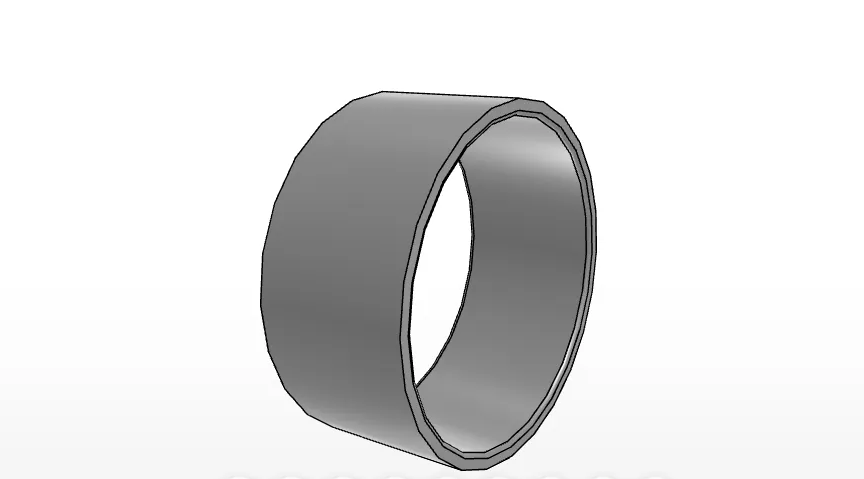

IKO LRT10511550
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TR11515350
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT10511550
Shaft Dimaeter
105
mm
Inside Diamater
105
mm
Outer Diameter
115
mm
Width
51
mm
rs min.
1.50
mm
da min
113.0
mm
da max
113.5
mm
Assembled bearings
TR 11515350
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
670.0
g
IKO LRT10511550 Inner Ring Overview
What is the IKO LRT10511550?
The LRT10511550 is an IKO Inner Ring in the Inner Rings product series. It is a metric inner ring listed for general usage and designed to assemble with TR11515350.
- Brand: IKO
- Series: Inner Rings
- Category: Brand > IKO > Inner Rings
- Bearing Type: Inner Rings
LRT10511550 Dimensions and Material
What dimensions and material are specified for the LRT10511550?
The supplied product data identifies the following dimensions for the LRT10511550 inner ring:
- Shaft Diameter: 105 mm
- Inside Diameter: 105 mm
- Outer Diameter: 115 mm
- Width: 51 mm
- rs min.: 1.50 mm
- da min.: 113.0 mm
- da max: 113.5 mm
The listed bearing material is high carbon chrome steel; the product title also refers to high carbon steel.
LRT10511550 Assembly and Reference Details
Which bearing and mass information is provided for the LRT10511550?
The product data lists TR11515350 as the assembled bearing reference for this inner ring. The listed mass for the LRT10511550 is 670.0 g. Assembly suitability should be checked against the matching component requirements.
- Order Number: LRT10511550
- Assembled Bearings: TR11515350
- Mass: 670.0 g
