IKO LRT11012030
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA4822
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT11012030
Shaft Dimaeter
110
mm
Inside Diamater
110
mm
Outer Diameter
120
mm
Width
30
mm
rs min.
1.00
mm
da min
115.0
mm
da max
118.0
mm
Assembled bearings
RNA 4822
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
410.0
g

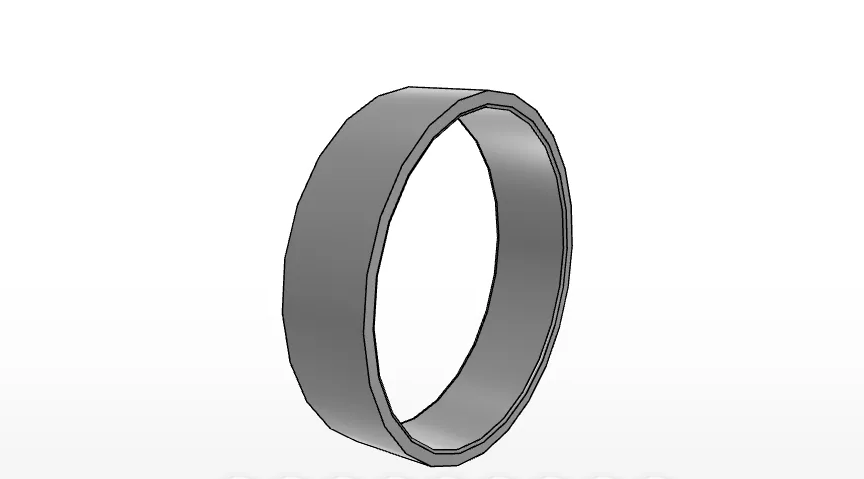

IKO LRT11012030 Inner Ring for Metric Bearing Assembly
What is the IKO LRT11012030?
The LRT11012030 is an IKO Inner Rings series product listed for general usage and designed to assemble with RNA4822. It is categorized under Brand > IKO > Inner Rings.
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner Rings
- Order number: LRT11012030
LRT11012030 Dimensions and Construction Details
What dimensions and material are provided for this inner ring?
The supplied product data identifies the LRT11012030 as a metric inner ring made from high carbon chrome steel. The title information also refers to high carbon steel.
- Shaft / inside diameter: 110 mm
- Outer diameter: 120 mm
- Width: 30 mm
- rs minimum: 1.00 mm
- da minimum: 115.0 mm
- da maximum: 118.0 mm
- Mass: 410.0 g
LRT11012030 Compatibility and Product Identification
Which bearing is listed for assembly with this IKO inner ring?
The product data lists RNA 4822 as the assembled bearing for the LRT11012030. Use the listed dimensions and assembly reference to confirm suitability for the intended bearing arrangement.
- Model: LRT11012030
- Assembly reference: RNA 4822
- Measurement system: Metric
- Reported usage: General usage
