IKO LRT12013545
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA4924
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT12013545
Shaft Dimaeter
120
mm
Inside Diamater
120
mm
Outer Diameter
135
mm
Width
45
mm
rs min.
1.10
mm
da min
126.5
mm
da max
133.0
mm
Assembled bearings
RNA 4924
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
1030.0
g

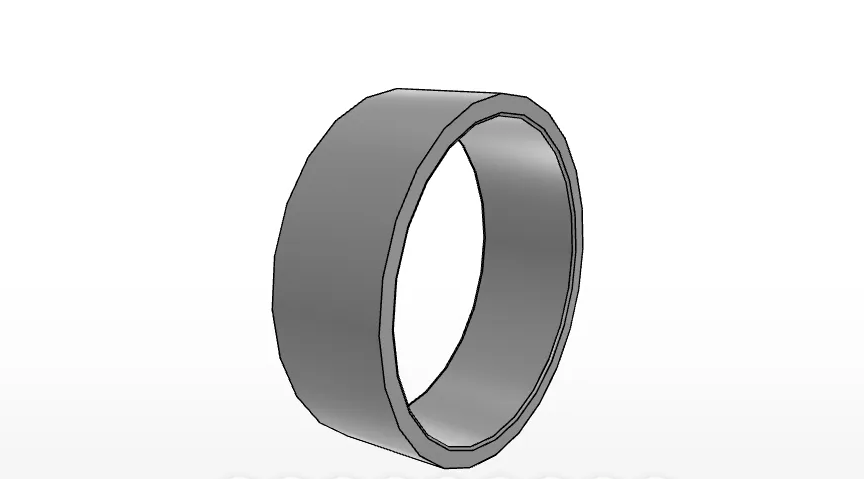

IKO LRT12013545 Inner Ring for Metric Bearing Arrangements
What is the LRT12013545?
The LRT12013545 is an IKO Inner Rings series metric inner ring. It is listed for assembly with an RNA4924 bearing and is identified under the category path Brand > IKO > Inner Rings.
- Brand: IKO
- Model/order number: LRT12013545
- Bearing type: Inner Ring
- Series: Inner Rings
Dimension and Material Details for the LRT12013545
What dimensions and material are specified for this inner ring?
The supplied product data lists the inner ring with a 120 mm shaft/inside diameter, 135 mm outer diameter, and 45 mm width. The listed bearing material is high carbon chrome steel; the title introduction also refers to high carbon steel.
- Inside diameter: 120 mm
- Outer diameter: 135 mm
- Width: 45 mm
- rs min.: 1.10 mm
- da min.: 126.5 mm
- da max.: 133.0 mm
- Mass: 1030.0 g
LRT12013545 Compatibility and Product Identification
Which bearing is listed for assembly with the LRT12013545?
The product data identifies RNA 4924 as the assembled bearing. Use the listed dimensions and compatibility information to compare the part with the required inner ring before selection or installation.
- Assembled bearing: RNA 4924
- Usage description: General Usage, Metric
- Category: Brand > IKO > Inner Rings
