IKO LRT121613
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA4901 and RNAF162413
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT121613
Shaft Dimaeter
12
mm
Inside Diamater
12
mm
Outer Diameter
16
mm
Width
13
mm
rs min.
0.30
mm
da min
14.0
mm
da max
15.0
mm
Assembled bearings
RNA 4901
Assembled bearings
RNAF 162413
Assembled bearings
-
Assembled bearings
-
Mass
8.5
g

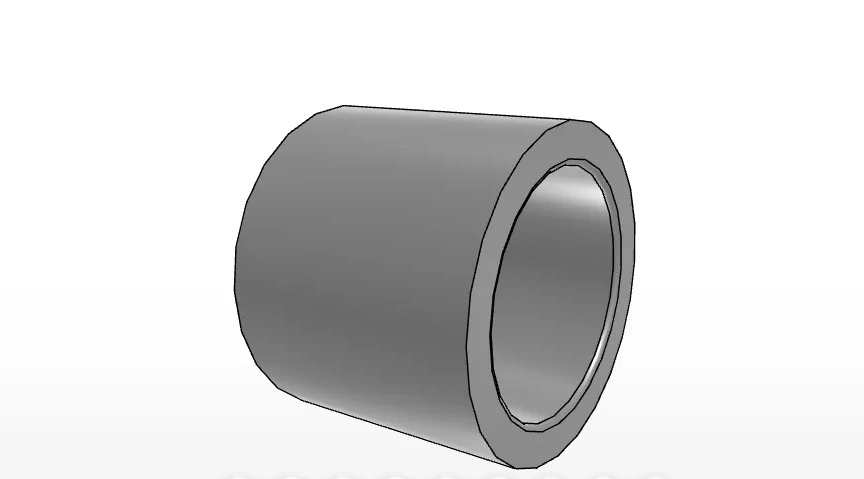

IKO LRT121613 Metric Inner Ring
The IKO LRT121613 is an inner ring in the IKO Inner Rings series. It is listed for general usage and is made from high carbon steel, with the bearing material identified as high carbon chrome steel.
What are the basic dimensions of the LRT121613?
- Shaft / inside diameter: 12 mm
- Outer diameter: 16 mm
- Width: 13 mm
- rs minimum: 0.30 mm
- da range: 14.0 mm minimum to 15.0 mm maximum
Designed for Assembly with Listed Bearings
The LRT121613 is identified for assembly with RNA 4901 and RNAF 162413 bearings. These assembly references are provided in the product data for matching the inner ring with the stated bearing models.
Which bearings can be paired with this inner ring?
- RNA 4901
- RNAF 162413
LRT121613 Product Specifications
This IKO inner ring has a listed mass of 8.5 g and belongs in the product category path Brand > IKO > Inner Rings. It uses order number LRT121613.
What identifying and material details are provided?
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner Rings
- Material: High carbon steel / high carbon chrome steel
- Usage: General usage
- Mass: 8.5 g
