IKO LRT152012S
Inner Ring, Metric, For Roller Followers, High Carbon Steel, Assembled Inner Ring of NAST15R and NAST15

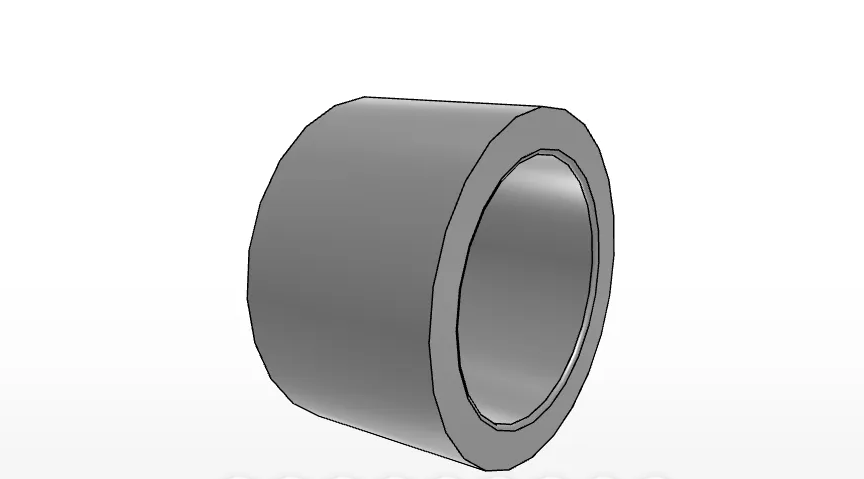

IKO LRT152012S Inner Ring for Roller Followers
The LRT152012S is an IKO Inner Rings series metric inner ring identified for use with roller followers. It is described as an assembled inner ring for NAST15R and NAST15, and the supplied data also lists compatibility with RNAF 203212 assembled bearings.
What bearing type and material are specified for the LRT152012S?
The product is categorized as an Inner Ring. The listed bearing material is high carbon chrome steel, while the detailed title describes the inner ring as high carbon steel.
LRT152012S Metric Dimensions and Mass
- Order number: LRT152012
- Shaft diameter: 15 mm
- Inside diameter: 15 mm
- Outer diameter: 20 mm
- Width: 12 mm
- rs minimum: 0.30 mm
- da minimum: 17.0 mm
- da maximum: 19.0 mm
- Mass: 12.0 g
What are the LRT152012S bore, outside diameter, and width?
The supplied dimensions are a 15 mm inside diameter for a 15 mm shaft, a 20 mm outer diameter, and a 12 mm width. The listed mass is 12.0 g.
IKO Inner Ring Series Product Information
The LRT152012S is presented under the category path Brand > IKO > Inner Rings. The product introduction identifies it as a metric inner ring for roller followers and as the assembled inner ring for NAST15R and NAST15 units.
Which assembled bearings are referenced in the supplied data?
The detailed title references NAST15R and NAST15. The side data lists RNAF 203212 under assembled bearings. No additional application or compatibility claims are provided beyond this supplied information.
