IKO LRT152013
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA4902 and RNAF202813

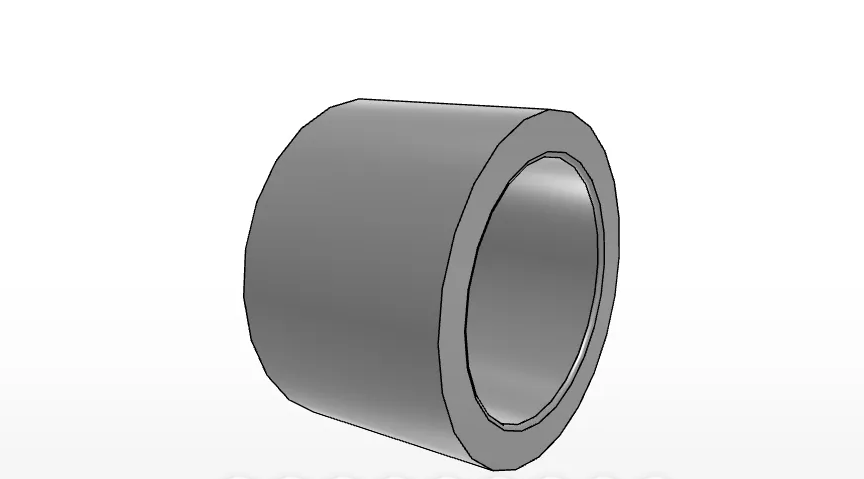

IKO LRT152013 Inner Ring for Metric Bearing Assemblies
The IKO LRT152013 is an inner ring within the IKO Inner Rings product series. It is listed for general usage and is intended to assemble with RNA4902 and RNAF202813 bearings.
What bearing type and model does this product represent?
This product is an inner ring identified by order number LRT152013. It belongs to the category path Brand > IKO > Inner Rings.
High Carbon Chrome Steel Construction with Specified Dimensions

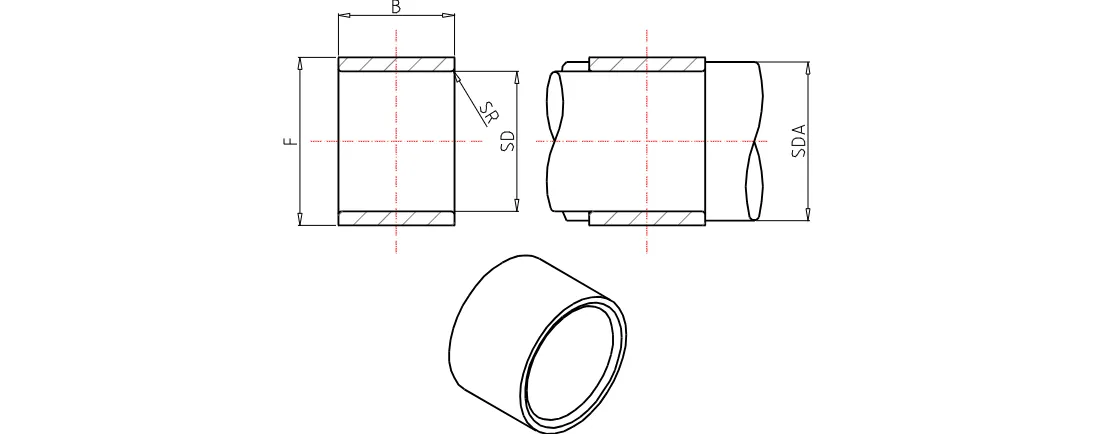

The supplied product data identifies the material as high carbon chrome steel, also described in the product title as high carbon steel. Its listed dimensions are:
- Shaft diameter: 15 mm
- Inside diameter: 15 mm
- Outer diameter: 20 mm
- Width: 13 mm
- Mass: 13.5 g
What related dimensions are provided for installation reference?
The data lists rs min. 0.30 mm, da min 17.0 mm, and da max 19.0 mm. These values can be used when checking the stated assembly dimensions.
Compatible Assembly Information for the LRT152013 Inner Ring
The LRT152013 inner ring is specified for assembly with the following bearing identifiers:
- RNA 4902
- RNAF 202813
No additional assembled bearings are listed in the supplied product data.
How should this inner ring be selected for a bearing arrangement?
Selection should be based on the listed model, dimensions, material, and compatible bearing references. Confirm compatibility with the target assembly before use, as application-specific performance details are not included in the supplied data.
