IKO LRT152023
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNA6902
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT152023

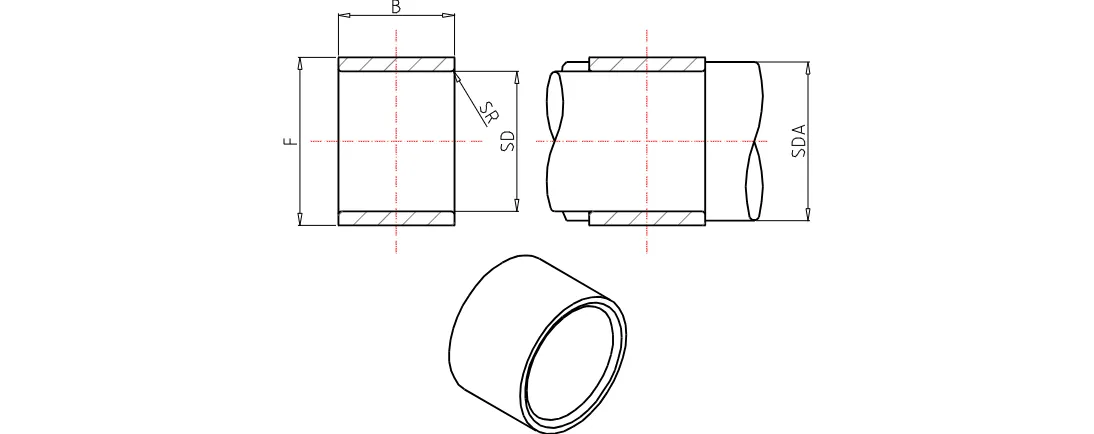

Shaft Dimaeter
15
mm
Inside Diamater
15
mm
Outer Diameter
20
mm
Width
23
mm
rs min.
0.30
mm
da min
17.0
mm
da max
19.0
mm
Assembled bearings
RNA 6902
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
24.0
g

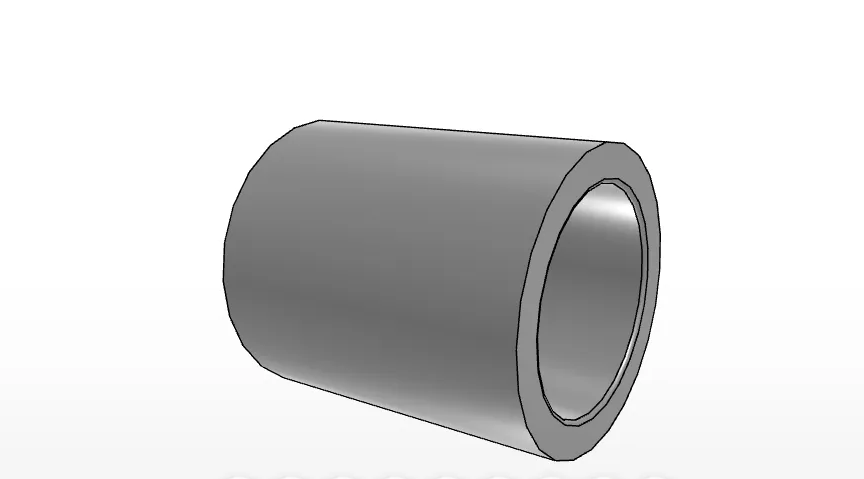

IKO LRT152023 Inner Ring Overview
The IKO LRT152023 is an inner ring in the IKO Inner Rings series. It is listed as a metric, general-usage inner ring designed to assemble with the RNA 6902 bearing.
What are the basic dimensions of the LRT152023?
The supplied data lists a shaft diameter and inside diameter of 15 mm, an outer diameter of 20 mm, and a width of 23 mm.
LRT152023 Material and Bearing Data
- Bearing type: Inner Ring
- Brand: IKO
- Series: Inner Rings
- Material: High carbon chrome steel
- Mass: 24.0 g
- rs minimum: 0.30 mm
- da minimum: 17.0 mm
- da maximum: 19.0 mm
What material is specified for this inner ring?
The structured product data identifies the material as high carbon chrome steel, also described in the product introduction as high carbon steel.
Assembly Information for LRT152023
The product record identifies the LRT152023 as an inner ring intended for assembly with RNA 6902. Category placement is listed as Brand > IKO > Inner Rings.
Which assembled bearing is listed for the LRT152023?
The supplied data lists RNA 6902 as the assembled bearing. Assembly should follow the bearing arrangement and dimensional information provided for that component.
