IKO LRT152026
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNAFW202826
(BRAND)：IKO
(Availability)：In Stock
Order Number
LRT152026
Shaft Dimaeter
15
mm
Inside Diamater
15
mm
Outer Diameter
20
mm
Width
26
mm
rs min.
0.30
mm
da min
17.0
mm
da max
19.0
mm
Assembled bearings
RNAFW 202826
Assembled bearings
-
Assembled bearings
-
Assembled bearings
-
Mass
28.0
g

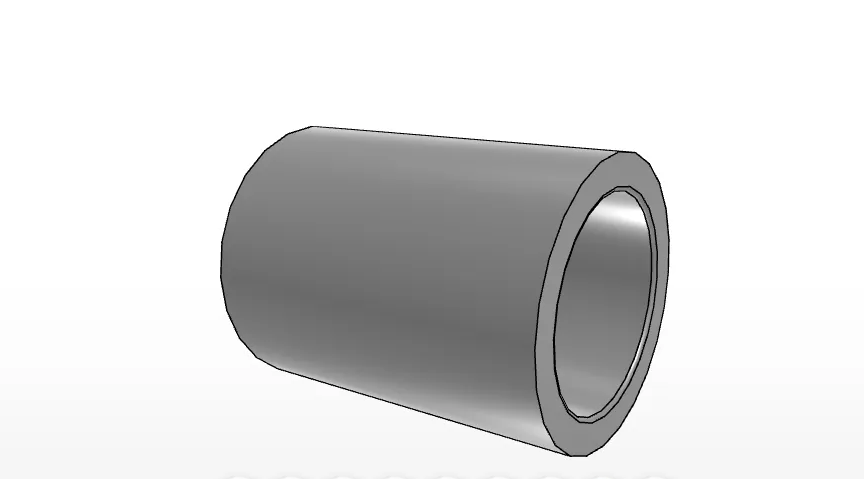

IKO LRT152026 Inner Ring for Metric Bearing Assembly
What is the IKO LRT152026?
The IKO LRT152026 is an inner ring in the IKO Inner Rings product series. It is designed for assembly with RNAFW202826 and is listed for general metric usage.
- Brand: IKO
- Series: Inner Rings
- Bearing type: Inner Ring
- Order number: LRT152026
LRT152026 Dimensions and Specification Data
What dimensions are provided for the LRT152026?
The supplied product data identifies the following measurements for the IKO LRT152026 inner ring:
- Shaft diameter / inside diameter: 15 mm
- Outer diameter: 20 mm
- Width: 26 mm
- rs minimum: 0.30 mm
- da minimum: 17.0 mm
- da maximum: 19.0 mm
High Carbon Chrome Steel Construction Details
What material and assembly information are stated?
The LRT152026 is identified as high carbon chrome steel in the list data, while the product detail describes the inner ring material as high carbon steel. The stated mass is 28.0 g, and the ring is intended to assemble with RNAFW 202826.
- Material: High carbon chrome steel / high carbon steel
- Assembled bearing reference: RNAFW 202826
- Mass: 28.0 g
