IKO LRT202516
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with RNAF253716

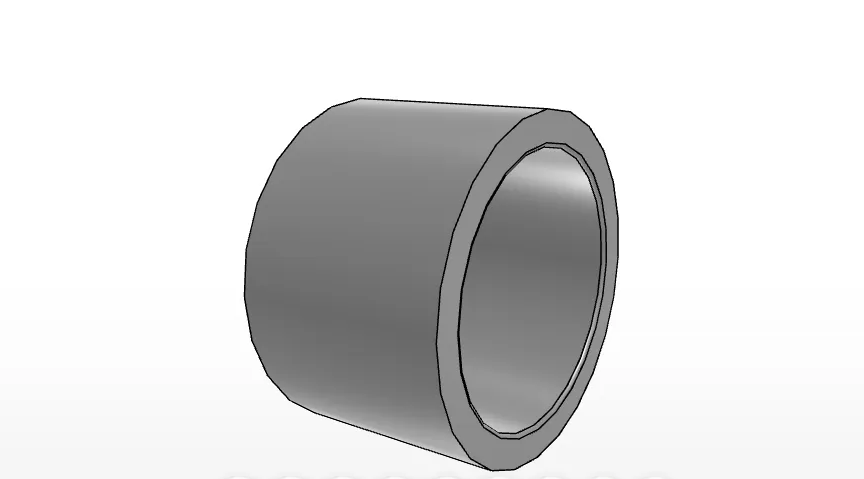

IKO LRT202516 Inner Ring Overview
The LRT202516 is an IKO Inner Ring designed for assembly with RNAF 253716. It is listed in the IKO Inner Rings category and has a metric bore configuration for general usage.
What are the basic model and brand details?
This inner ring is identified by order number LRT202516 and is manufactured by IKO. The product series is Inner Rings, and the supplied category path is Brand > IKO > Inner Rings.
Specified Dimensions and Material
The LRT202516 has a shaft diameter and inside diameter of 20 mm, an outer diameter of 25 mm, and a width of 16 mm. The listed bearing material is high carbon chrome steel; the descriptive product data also refers to high carbon steel.

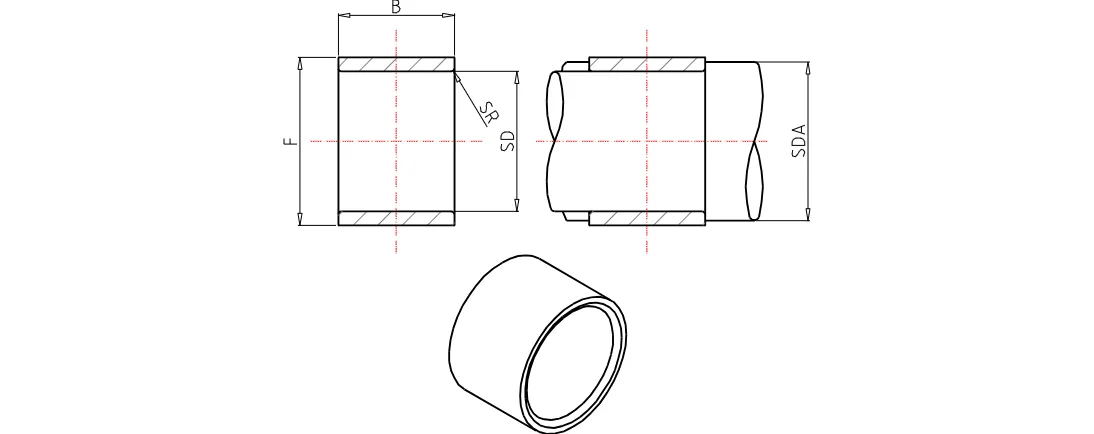

What dimensional details are provided for fitment?
- rs min.: 0.30 mm
- da min.: 22.0 mm
- da max.: 24.0 mm
- Mass: 22.0 g
Assembly Information for RNAF 253716
The product data identifies the LRT202516 as an inner ring to assemble with RNAF253716. It should be used according to the listed assembly relationship and required dimensional checks.
Which bearing is listed for assembly with this inner ring?
The supplied data lists RNAF 253716 as the assembled bearing for the LRT202516. Confirm compatibility using the bearing arrangement, shaft dimensions, and installation requirements before selection.
