IKO LRT252930
Inner Ring, Metric, General Usage, High Carbon Steel, To Assemble with TAF293830

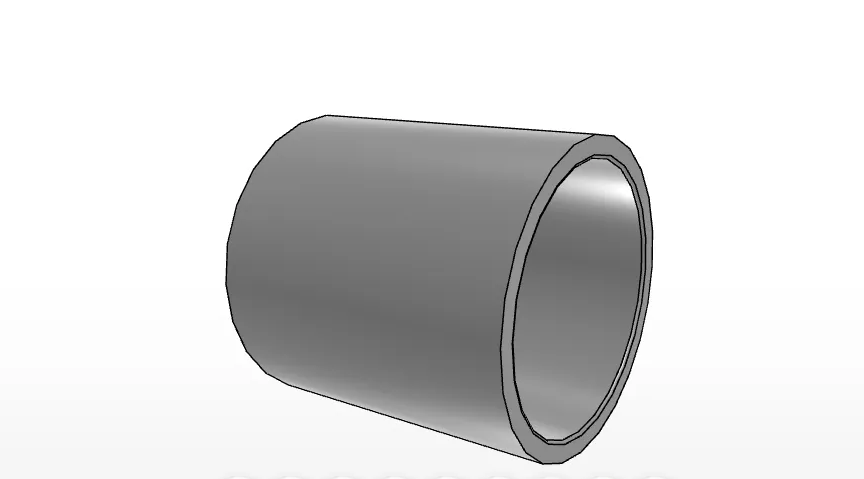

IKO LRT252930 Inner Ring Specifications
The IKO LRT252930 is a metric inner ring in the IKO Inner Rings series. It is listed for general usage and is referenced for assembly with TAF293830.
What are the stated dimensions of the IKO LRT252930?
- Shaft diameter / inside diameter: 25 mm
- Outside diameter: 29 mm
- Width: 30 mm
- rs minimum: 0.30 mm
- da minimum: 27.0 mm
- da maximum: 28.0 mm
Material and Series Details
The LRT252930 is categorized under Brand > IKO > Inner Rings. The product data identifies the bearing material as high carbon chrome steel, and the detail information also describes it as high carbon steel.
What product information should be used for material identification?
Use the supplied listing specification, High Carbon Chrome Steel, when identifying the bearing material. The detail text also refers to High Carbon Steel; no additional material grade or certification is provided in the available data.
Assembly Reference and Mass
The LRT252930 inner ring is listed to assemble with the TAF 293830 bearing. The recorded mass for this inner ring is 38.0 g.
What assembly-related details are available for this inner ring?
The supplied data lists Assembled bearings: TAF 293830 and an order number of LRT252930. Compatibility or installation suitability should be confirmed against the mating component and required dimensions before use.
